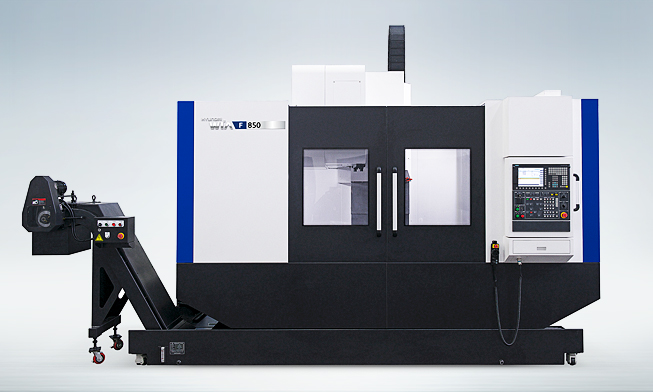

Hyundai Wia F850

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia F850 with other machines in its class , ,

In stock

Travel (X / Y / Z)
63" / 33.4" / 22.8"

Specifications

Description Unit F850
Table Size in 70.87×33.46
Max. Load Capacity kg 1,000
Spindle Driving Method – Direct
Spindle Taper – BT40
Spindle RPM r/min 12,000
Spindle Power hp 33.5/14
Spindle Torque ft.lbs 88.5/53.84
Travel(X/Y/Z) in 63/33.46/22.8
Rapid Feed Rate(X/Y/Z) in/min 1417/1417/1417
Slide Type – LM
No. of Tools EA 24
Tool Change Time
(Chip To Chip)		 sec 4.7

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Hyundai Wia F850

Features

  • Designed specifically for processing large aluminum metal plates and sheets and other plates
  • 850mm(33.4″) Y-axis for large work envelope
  • Y-axis with 4 guideways for superb rigidity and smooth motion
  • Roller Type LM Guide (130% increase in rated load compared to Ball Type)
  • 12,000rpm high speed direct drive spindle
  • High speed, 24 Tool Twin Arm Automatic tool Changer (C-C : 4.7sec)

Specifications (metric)

Description Unit F850
Table Size mm 1,800×850
Max. Load Capacity kg 1,000
Spindle Driving Method – Direct
Spindle Taper – BT40
Spindle RPM r/min 12,000
Spindle Power kW 25/10.5
Spindle Torque N.m 120/73
Travel(X/Y/Z) mm 1,600/850/580
Rapid Feed Rate(X/Y/Z) m/min 36/36/36
Slide Type – LM
No. of Tools EA 24
Tool Change Time
(Chip To Chip)		 sec 4.7

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
