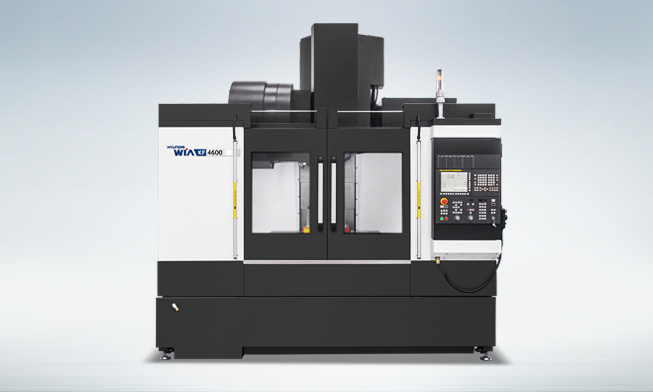

Hyundai Wia KF4600

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia KF4600 with other machines in its class , ,

In stock

Travel (X / Y / Z)
35.48" / 18.1" / 20.4"

Specifications

Description Unit KF4600(STD)
Table Size in 41.34×18.1
Max. Load Capacity kg 600
Spindle Driving Method – Direct
Spindle Taper – BBT40
Spindle RPM r/min 8,000
Spindle Power hp 25/15
Spindle Torque ft.lbs 87/51.6
Travel(X/Y/Z) in 35.43/18.1/20.5
Rapid Feed Rate(X/Y/Z) m/min 1417/1417/1417
Slide Type – LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 3.2

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Hyundai Wia KF4600

Features

  • Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K)
  • Increases strength through structural analysis
  • Expands machining domain with y-axis 460mm design
  • Shortens not-cutting time with rapid feeds (36/36/36m/min.)
  • Applied the latest HEIDENHAIN TNC 620 controller

Specifications (metric)

Description Unit KF4600(STD) KF4600(OPT1) KF4600(OPT2) KF4600(OPT3)
Table Size mm 1050×460
Max. Load Capacity kg 600
Spindle Driving Method – Direct Built in
Spindle Taper – BBT40
Spindle RPM r/min 8,000 12,000 15,000
Spindle Power kW 18.5/11 15/11 18.5/11 25/22
Spindle Torque N.m 118/70 286/143 118/70 167/95
Travel(X/Y/Z) mm 900/460/520
Rapid Feed Rate(X/Y/Z) m/min 36/36/36
Slide Type – LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 3.2

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Specifications

Description Unit KF4600(STD) KF4600(OPT1) KF4600(OPT2) KF4600(OPT3)
Table Size in 41.34×18.1
Max. Load Capacity kg 600
Spindle Driving Method – Direct Built in
Spindle Taper – BBT40
Spindle RPM r/min 8,000 12,000 15,000
Spindle Power hp 25/15 15/15 25/15 33.5/30
Spindle Torque ft.lbs 87/51.6 211/105.5 87/51.6 123.17/70
Travel(X/Y/Z) in 35.43/18.1/20.5
Rapid Feed Rate(X/Y/Z) m/min 1417/1417/1417
Slide Type – LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 3.2

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
