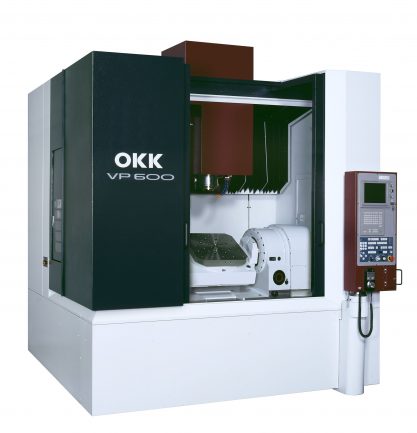

OKK VP600-5AX

cnc machine qoute
OKK VP600
Roll over image to zoom in
Click to open expanded view

Compare OKK VP600-5AX with other machines in its class , ,

In stock

Main Specification
X Axis Travel 1120 (44.09″)
Y Axis Travel 610 (24.02″)
Z Axis Travel 460 (18.11″)
A Axis Travel -105 to +15 degrees
C Axis Travel 360 degrees
Rapid Tranverse Rate 48m/mn (X and Y axes) 36m/mn (Z axis)
Spindle Speeds 100 to 12,000 (OP: 20,000)
Spindle Motor 30/25HP
Magazine Capacity 30 (OP: 40, 60, 80, 120)
Table Size 500 (19.69″) Square
Spindle Taper No.40
Categories: , ,

OKK offers a wide variety of advanced, high-speed, high-accuracy machining centers to meet all your unique needs. New technology and rigid structures offer enhanced machining accuracy and improved productivity. The VP-5AX Series Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.

FEATURES & BENEFITS
  • highly rigid linear roller guide
  • double-anchoring type ball screws
  • Coolant through spindle preparation
  • Coil-type chip conveyor
  • Excellent Chip Disposal, accessibility with compact-sized machine
  • Space saving design for economical use of floor space
OPTIONS
  • Direct turn 2 APC
