Yasda H-40i

Compare Yasda H-40i with other machines in its class , ,

In stock

Specifications

TravelX-axis travel (Longitudinal movement of table)875mm
Y-axis travel (Vertical movement of spindle head)740mm
Z-axis travel (Cross movement of Column)685mm
B-axis travel (Table rotation)230°(-185°〜+45°)
A-axis travel (Table rotation)360°
TableTable working surface400x400mm
Table loading capacity200kg(200Nm)
SpindleThe highest revolving speed20000min-1
Spindle taper hole7/24 taper,No.40(BT40)
Automatic tool changerTool storage capacity60 tools[120 and 180 and 240]
APC/PLSThe number of palettes2nd page / [24th page ]
NC equipmentFANUC 31i-MODEL B5

yasda machine tools

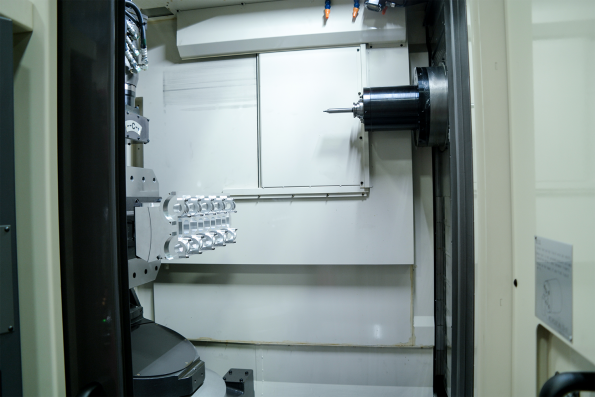

YASDA’s H40i is improving versatile performances in its 5-faces indexing application and complex simultaneous 5-axis applications, due to its high rigidity and high accuracy. This outstanding performance results not only in less setting up, but also in total profitability due to many factors saving machining cost. H40i has option of 12PLS up to maximum 24PLS. Reliable multiple pallets management option satisfy versatile purpose of usage and long hours automation.

FEATURES & BENEFITS
  • 5 Axis High Precision Horizontal Machining Center
  • High Speed Direct Drive Rotary Axis
  • Self-contained Multi Pallet Stacking System
  • 20000 rpm Spindle Speed
  • Space Saving Footprint
  • Rigid Machine Structure for Machining Various Material Types
  • Scale Feedback for Precise Positioning
  • Probing Systems
OPTIONS
  • High Pressure Flood and Through Spindle Coolant Systems
  • Advanced Work Scheduling and Tool Management Systems
  • FANUC Functions
