Yasda YBM 8T-TT

Compare Yasda YBM 8T-TT with other machines in its class , ,

In stock

Specifications

TravelX-axis travel (Longitudinal movement of table)1000mm
Y-axis travel (Vertical movement of spindle head)1000mm
Z-axis travel (Cross movement of Column)1100mm
A-axis travel (Table rotation)-105°〜+15°
B-axis travel (tilting table rotation)360°
Traverse rateRapid traverse rate (Xaxis)40000mm/min
Rapid traverse rate (Y,Zaxis)48000mm/min
Feedrate(Aaxis)5min-1
Feedrate(Baxis)20min-1
Feedrate(X,Y,Zaxis)15000mm/min (HSM MODE)
TableTable working surface630x630mm
Table loading capacity800kg
SpindleThe highest revolving speed10000min-1
Spindle taper hole7/24 taper,No.50(BT50)
Automatic tool changerTool storage capacity60 tools~
NC equipmentFANUC 31i-MODEL B5

yasda machine tools

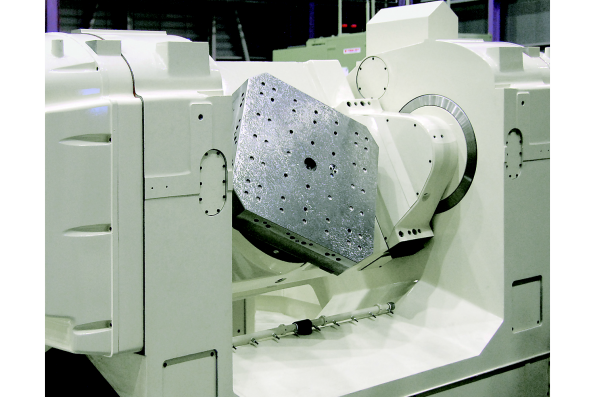

A critical condition for realizing a high accuracy 5-axis machining is that the center of rotation axis is always constant in space. The 5-axis machine YBM 8T-TT developed on the basis of YBM 8T fulfills this condition, and for high speed and high accuracy machining, the A-axis drive uses a system that controls synchronously both axes of cradle. Further, the trunnion base has an integral construction to improve the rigidity and also the A-axis trunnion is thermally controlled, so that the influence of a cutting reaction force, mass variations, and thermal deformation can be minimized, thus enabling a high accuracy machining by high speed and high accuracy positioning.

FEATURES & BENEFITS
  • Trunnion Style 5 Axis Horizontal Machining Center
  • Through Hardened (HR60) Box Guide Ways
  • Optical Scale Feedback on XYZ Axis
  • Twin Ball Screws
  • Self-adjusting Spindle Preload System
  • Curvic Coupled Pallet Clamping with Air Blast
  • Thermal Distortion Stabilization
  • H frame Z Axis Steel Bed for Heat Distribution for Long Term Accuracy
  • Double Walled and Ribbed Y Axis Column with Minimal Axial Yaw
  • 72 Tooth Curvic Coupling Pallet Clamping with Air Blast
  • Rigid Machine Structure for Machining Various Material Types
  • Optical Scale Feedback for Precise Positioning.
  • Probing Systems
OPTIONS
  • High-torque Spindle
  • High-speed Spindle
  • FMS Integration
  • Expandable Preload Stations
  • FANUC Functions
