Yasda YBM Vi40

cnc machine qoute
yasda YBM-Vi40

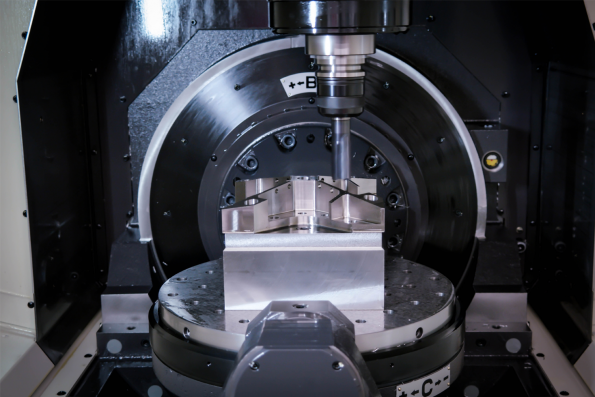

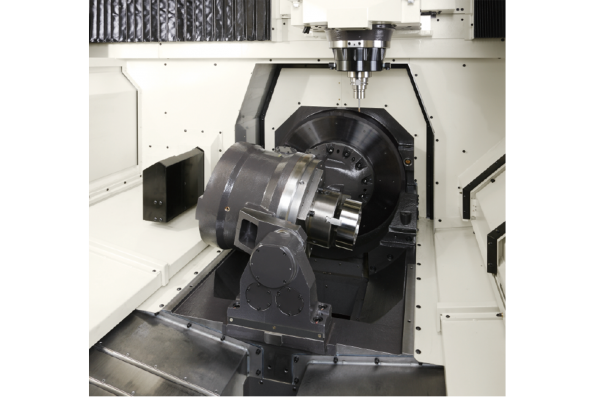

yasda YBM-Vi40 Internal
yasda YBM-Vi40 Internal
yasda YBM-Vi40 Internal
yasda YBM-Vi40 Internal
yasda YBM-Vi40 Internal
Roll over image to zoom in
Click to open expanded view

Compare Yasda YBM Vi40 with other machines in its class , ,

In stock

Specifications

Travel X-axis travel (Longitudinal movement of table) 900mm
Y-axis travel (Vertical movement of spindle head) 500mm (Under a limited condition)
Z-axis travel (Cross movement of Column) 450mm
C-axis travel (Table rotation) 360°
B-axis travel (Table rotation) ±110°
Traverse rate Rapid traverse rate (X,Y,Zaxis) 20000mm/min
Feedrate(Baxis) 20min-1（WORM GEAR）
Feedrate(Caxis) 100min-1（DD MOTOR）
Feedrate(X,Y,Zaxis) 12000mm/min
Table Table working surface Φ400mm
Table loading capacity 200kg(200Nm)
Spindle The highest revolving speed 24000min-1
Spindle taper hole 7/24 taper,No.40(BT40)
Automatic tool changer Tool storage capacity 60 tools
NC equipment FANUC 31i-MODEL B5
Categories: , ,

yasda machine tools

YASDA’s YBM Vi40 structure is based on YMB series known for highly accurate and rigid machines. The YBM Vi40 is a reliable solution for 5-axis dies and mold making. By adopting the basic structure of a 3-axis machine from YMB V series, YBM Vi40 has comparable cutting ability. In combination with 5-axis machining, this machine can exert high performance for high-precision machining of highly hard materials in complicated shapes which are difficult for a 3-axis machine.

FEATURES & BENEFITS
  • B/C Axis Tilt Rotary Table
  • Direct Drive Self-adjusting Spindle Preload
  • Hybrid Box Guide way with Roller Pack
  • Optical Scale Feedback
  • Symmetrical Bridge Structure
  • DD Direct Drive C Axis Motor
  • Worm Gear Driven B Axis
  • Advanced Thermal Displacement
  • 5 Sided Machining with a Single Set-up
  • Rigid Structure Designed for Hard Milling Die Mold Applications
  • Dramatically Reduces the Number of Process Steps and Time
  • Machine Structure is Designed for High-precision and High Surface Part Quality
  • Probing Systems
  • Shorter Tool Length Allows for Higher Feed Rates
OPTIONS
  • Robotic Interface for Erowa or System 3R pallets
  • Through Spindle Coolant (TSC)
  • 60/100/200 ATC Capacity
