Yasda YBM 10T-100TT

Compare Yasda YBM 10T-100TT with other machines in its class , ,

In stock

Specifications

TravelX-axis travel (Longitudinal movement of table)1500mm
Y-axis travel (Vertical movement of spindle head)1200mm
Z-axis travel (Cross movement of Column)1100mm
B-axis travel (Table rotation)360°
A-axis travel (Tilting table)100°(-95°〜+5°)
TableTable working surface1000x1000mm
Table loading capacity2000kg (Horizontal)
500kg・m (Vertical)
SpindleThe highest revolving speed10000min-1
Spindle taper hole7/24 taper,No.50(BT50)
Automatic tool changerTool storage capacity60 tools[90〜300]
APC/PLSThe number of palettes1L/U [5PLS]
NC equipmentFANUC 31i-MODEL B5

yasda machine tools

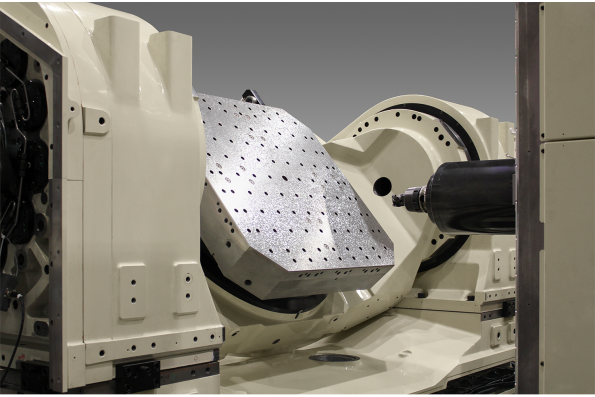

YASDA’s YBM10T-100TT machine is a newly developed simultaneous 5-axis machining center, which is equipped with a 1000 square-mm tilting table for YBM10T. It is new to the lineup of YBM10T and a high-end model machining center developed for performing stable high-precision processing with a high degree of efficiency as a theme. This processing ranges from difficult-to-cut materials to complicated profiling, in addition to aircraft parts which have recently been in high demand.

FEATURES & BENEFITS
  • Preload self-adjusting spindle mounted. Both heavy duty cutting at low spindle speed and highly accurate rotation with low-heat generation at high spindle speed are achieved
  • A two-motor torque tandem control spindle (option) mounted for YBM10T-100TT
  • Thermal distortion stabilized system equipped. This enables stable high-precision processing for an extended period of time by minimizing the machine-body thermal distortion caused by the factory environment
  • YASDA’s unique advanced function “HAS-3” equipped. This enables extremely high-precision processing at high speed by accurately reflecting NC data
  • High-precision five-axis processing support function “i-CAL” equipped. This enables high-precision and high-grade five-axis processing by accurately searching for the central coordinates of the important “rotation axis” and “spindle” which exert influence on processing accuracy and automatically sets them
  • H-frame Z-axis steel bed for heat distribution for long term accuracy
  • Double walled and ribbed Y-axis column with minimal axial yaw
  • 72 tooth curvic coupling pallet clamping with air blast
  • Rigid machine structure for machining various material types
  • Optical scale feedback for precise positioning
  • Probing Systems
OPTIONS
  • High-torque Spindle
  • High-speed Spindle
  • FMS Integration
  • Expandable Preload Stations
  • FANUC Functions
