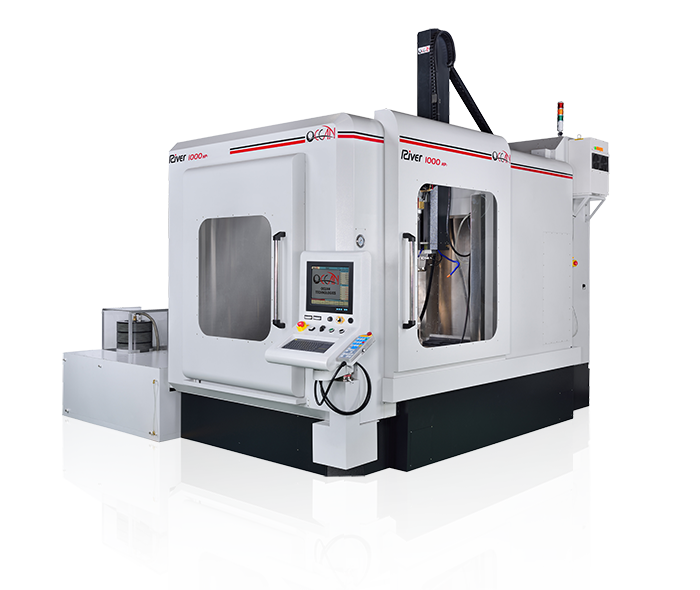

Compare Ocean River 1000 with other machines in its class Electrical Discharge Machine, Ocean -EDM
| Model no | River 1000 |
|---|---|
| Table travel (X,Y axes) | 1000 x 1200 mm |
| Work table size | 1200 x 1250 mm |
| Z axis travel | 1000 mm |
| W axis travel | 700 mm |
| Max. workpiece height | 1100 mm |
| Max. workpiece weight | 3000 kgs (with tool fixture) |
| Power input | According to local voltage |
| Max. average current | 32 Amps / (64 Amps optional) |
| Power capacity | 6 KVA |
| Electrode diameter | 0.1~3.0 mm / (3.1~6.3 mm Optional) |
| Machine net weight | 7000 kgs |
| Depth / Width / Height | 4350 x 4250 x 4000 mm |
| *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice. | |
