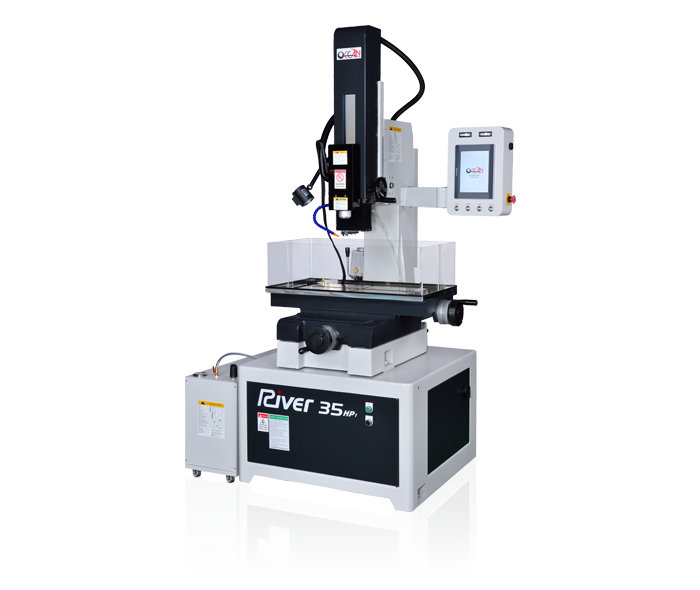

Ocean River 35

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Ocean River 35 with other machines in its class ,

In stock

Model no River 35
Table travel (X,Y axes) 350 x 250 mm
Work table size 600 x 300 mm
Z axis travel 350 mm
W axis travel 200 mm
Max. workpiece height 330 mm
Max. workpiece weight 250 kgs
Power input According to local voltage
Max. average current 32 Amps (64A optional)
Power capacity 3.8 KVA
Electrode diameter 0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.)
Machine net weight 1000 kgs
Depth / Width / Height 1200 x 1550 x 2230 mm
Categories: ,
Ocean technologies
FEATURES & BENEFITS
  • New HP-1 Generator Provides Higher Speeds and Lower Wear
  • 1 Touch Release Button for Quick Change of Drill Chuck
  • Power Backslide (W-Axis)
  • Automatic Electrode Wear Compensation
  • 10 Sets of Workpiece Coordinates
  • 32 Amp Generator
  • The sparking drilling is use of digital control mechanism, which can effectively enhance the small size drilling and speed by stability.
  • With HP1+(plus) high-speed circuit to enhance drilling speed.
