| Model no | River 3 |
|---|---|
| Table travel (X,Y axes) | 300 x 200 mm |
| Work table size | 350 x 250 mm |
| Z axis travel | 350 mm |
| W axis travel | 200 mm (300 Opt.) |
| Max. workpiece height | 180 mm (300 Opt.) |
| Max. workpiece weight | 150 kgs |
| Power input | According to local voltage |
| Max. average current | 25 Amps |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.2 ~ 3.0mm |
| Machine net weight | 600 kgs |
| Depth / Width / Height | 1100 x 1100 x 2000 mm |
| *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice. | |

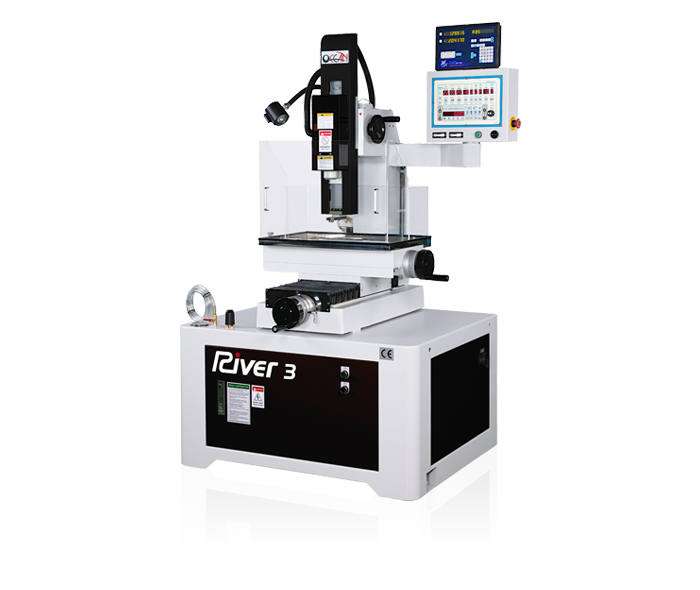

Ocean River 3
FEATURES & BENEFITS
- 1 Touch Release Button for Quick Change of Drill Chuck
- Manual Backslide (W-Axis)
- Automatic Electrode Wear Compensation
- Display Mode: Current Position, Depth to Burn, Electrode Wear
- 25 Amp Generator
- Five (5) Banks parameter data. Each set can save various machine parameters. Available to expand to ten (10) sets (optional).
- Parameter data can be finely adjusted and is suited for a range of machining operations. The unit can also use preset parameter data for easy operation.
- EDP function: point sparking (surface sparking).
- Display mode: (DSP, Wear, Depth, END, Pn).
- Auto/Manual searching work-piece surface.
- Auto/Manual electrode compensating function.
- Metric/Inch conversion
- Display two (2) axis.
- Flexible control box design for convenient increase of functionality, and the elimination of signal interference. Great compatibility.
