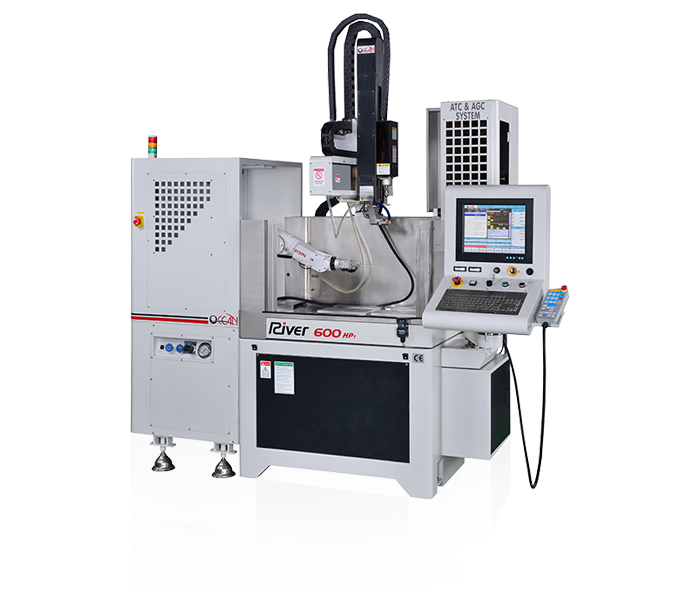

Compare Ocean River 600 with other machines in its class Electrical Discharge Machine, Ocean -EDM
| Model no | River 600 |
|---|---|
| Table travel (X,Y axes) | 600 x 400 mm |
| Work table size | 600 x 400 mm |
| Z axis travel | 400 mm |
| W axis travel | 450 mm |
| Max. workpiece height | 400 mm |
| Max. workpiece weight | 800 kgs |
| Power input | According to local voltage |
| Max. average current | 25 Amps( 32 / 64 Amps Optional ) |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.1 ~ 3.0mm |
| Machine net weight | 1100 kgs |
| Depth / Width / Height | 1030 x 1630 x 1960 mm |
| *Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice. | |
