Compare Hyundai Wia HS5000 with other machines in its class 40 Taper, Horizontal Machining Centers, Hyundai Wia Horizontal Machining Centers
Travel (X / Y / Z)
33.5″ / 27.6″ / 29.5″
33.5″ / 27.6″ / 29.5″
Specifications
| Description | Unit | HS5000 |
|---|---|---|
| Pallets Size | inch | 19.7″×19.7″ |
| Max. Load Capacity | lbf | 1,102 |

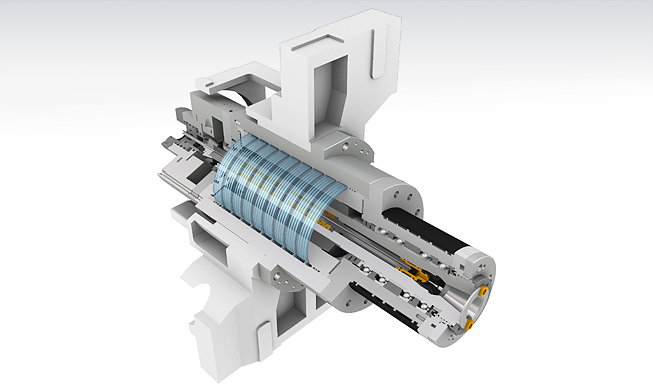

| Spindle Driving Method | – | Built in |
| Spindle Taper | – | BBT40 |
| Spindle RPM | r/min | 15,000 |
| Spindle Power | HP | 33.5/30 |
| Spindle Torque | lbf.ft | 123.1/70.0 |
| Travel(X/Y/Z) | inch | 33.5″/27.6″/29.5″ |
| Rapid Feed Rate(X/Y/Z) | in/min | 1968/1968/1968 |
| Slide Type | – | LM |
| No. of Tools | EA | 40 |
| Tool Change Time (Chip To Chip) |
sec | 3.8 |
| No. of Pallets | EA | 2 |
| APC Type | – | DIRECT TURN |
| Pallet Change Time | sec |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
