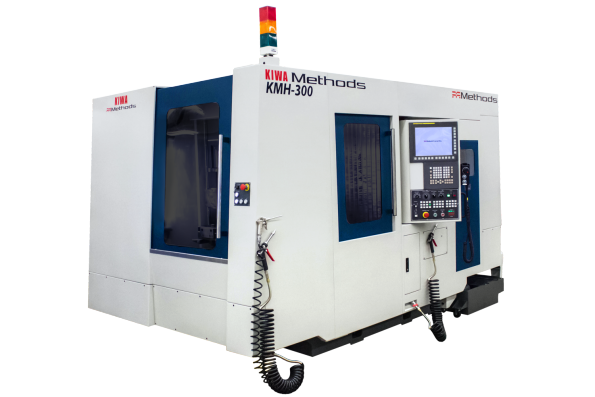

Kiwa KMH-300
The KMH-300 Series offer an integrated full rotary B-Axis and a reliable FANUC Oi-MF control with a 15 in. LCD screen. The machine features excellent chip evacuation and easy access for set-up / maintenance. A spindle oil cooling system and coolant-through ball-screws are standard.
The KMH-300 has a compact footprint of 140 in. depth x 107 in. width including the chip conveyor.
FEATURES & BENEFITS

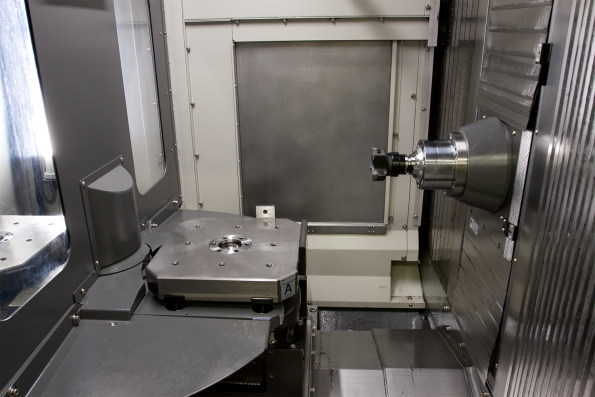

- Dual 320mm Pallets
- Roller Guide Ways
- 15HP/15,000rpm Direct Drive
- Big Plus Spindle 30 Taper

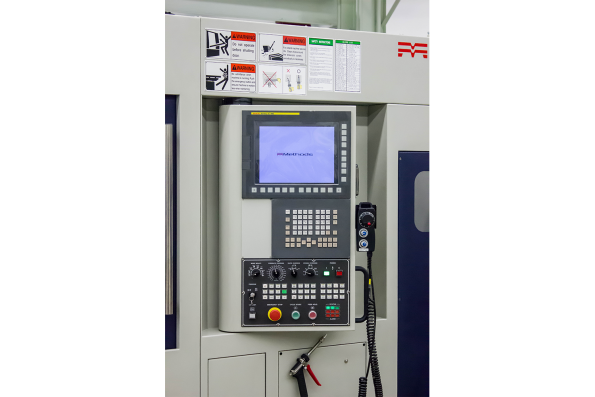

- 15” Fanuc LCD Screen
- Coolant Through Ballscrews (CTB)
- Integrated Full Rotary B-Axis
- Excellent Chip Evacuation
- Easy Access for Setup & Maintenance
OPTIONS
- AI Nano Contour Control II with 200 Block Look Ahead
- 20,000 RPM Spindle
- 6 Pallet APC
- Upgraded Chip Conveyor – LNS-Turbo MH500
- 40, 90 or 120 Tools
- Automatic Tool Length Measurement and Breakage Detection
- High Pressure Coolant through Spindle (20 Bar , 500 PSI
- X, Y, and Z Scales
- 31iMB Control
