In stock
| X Axis Travel | 1600 (62.99″) |
| Y Axis Travel | 1270 (50.00″) |
| Z Axis Travel | 1200 (47.24″) |
| Rapid Tranverse Rate | 24m/min (944 IPM) |
| Spindle Speeds | 20 to 6,000 RPM |
| Spindle Motor | 35/30 HP |
| Magazine Capacity | 60 (OP: 116, 176) |
| Table Size | 1,000 (39.37″) |
| Spindle Taper | No. 50 |
As with all OKKs we paid special attention to the rigidity of the cast body, built solid and features our massive liner roller guides and large-diameter ball screws for the feed system, allowing the MCH-R Series to easily cut titanium and other exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.

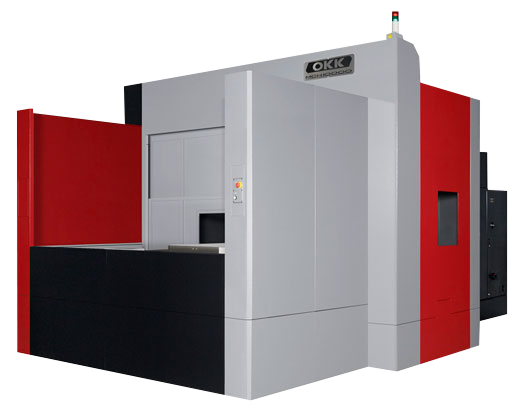

The new MCH10000R boxway horizontal machining center for super heavy-duty cutting inherits the features of OKK’s MCH series which have been proven over the years. A 3-step gear spindle develops 1,826Nm (1,348ft/lbs) of spindle torque. The MCH10000R is ideal for cutting hard to process materials like inconel, titanium and hastelloy.
Travel (X / Y / Z)
41.3″ / 34.4″ / 34.4″
Travel (X / Y / Z)
41.3″ / 34.4″ / 34.4″
Travel (X / Y / Z)
24.4" / 22" / 25.6"
Travel (X / Y / Z)
24.4" / 22" / 25.6"
Travel (X / Y / Z)
24.4" / 22" / 25.6"
Travel (X / Y / Z)
24.4" / 22" / 25.6"
Travel (X / Y / Z)
82.7″ / 53.1″ / 55.1″
Travel (X / Y / Z)
82.7″ / 53.1″ / 55.1″
