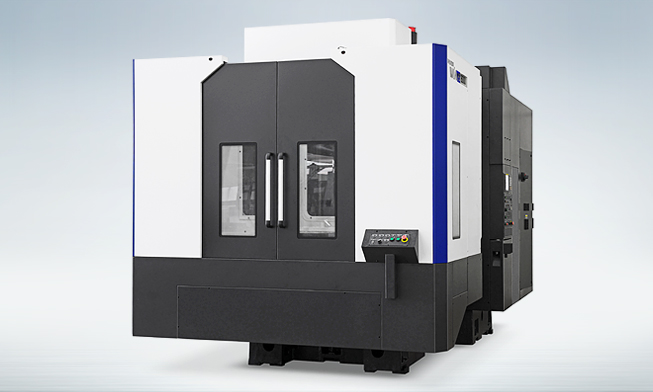

Compare Hyundai Wia HS8000 with other machines in its class 50 Taper - Hyundai Wia – HMC, Horizontal Machining Centers, Hyundai Wia Horizontal Machining Centers
Travel (X / Y / Z)
41.3″ / 34.4″ / 34.4″
41.3″ / 34.4″ / 34.4″
Specifications
| Description | Unit | HS8000 |
|---|---|---|

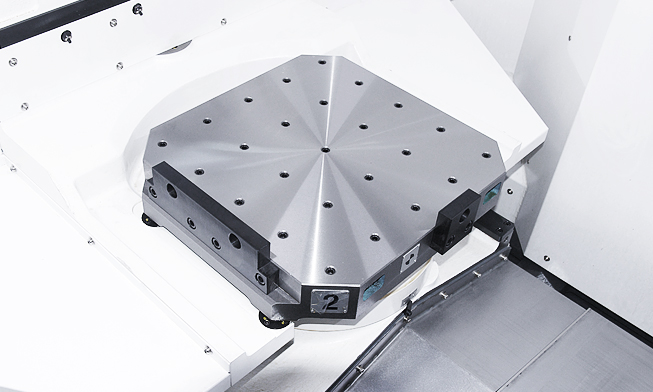

| Pallets Size | mm | 800×800 |
| Max. Load Capacity | kgf | 2 – 1,600 |

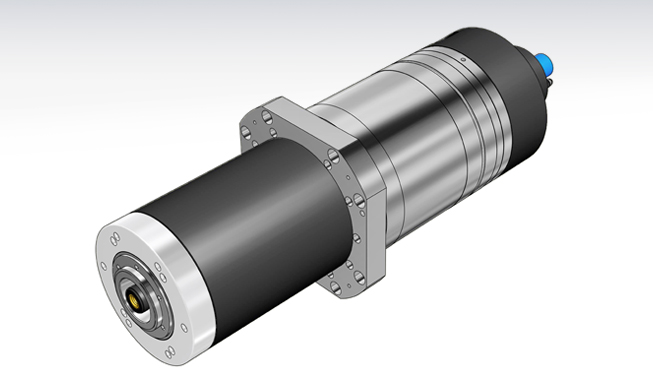

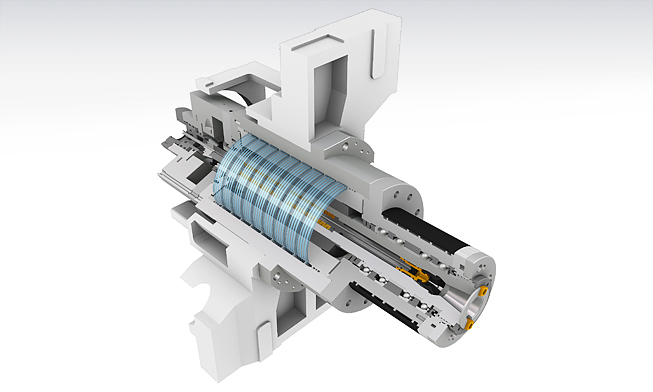

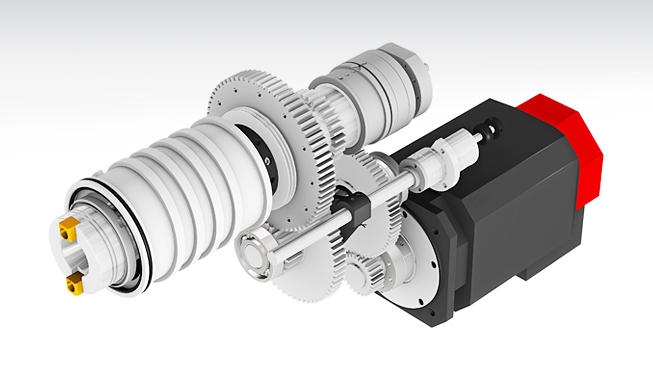

| Spindle Driving Method | – | GEAR |
| Spindle Taper | – | BBT50 |
| Spindle RPM | r/min | 8,000 |
| Spindle Power | kW | 22/18.5 |
| Spindle Torque | N.m | 781/657 |
| Travel(X/Y/Z) | mm | 1,050/875/875 |
| Rapid Feed Rate(X/Y/Z) | m/min | 50/50/50 |

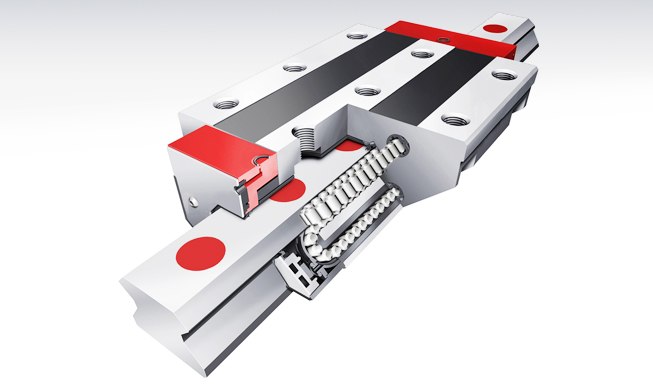

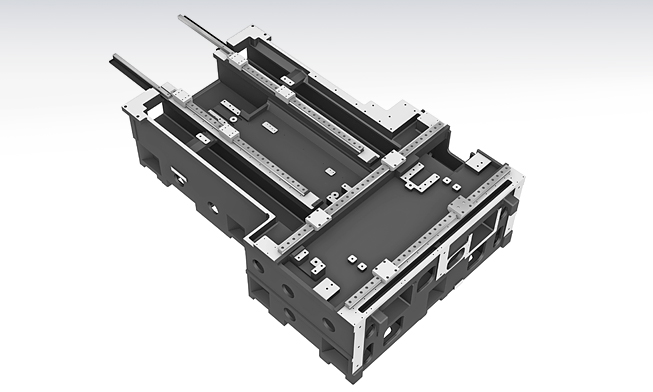

| Slide Type | – | LM |

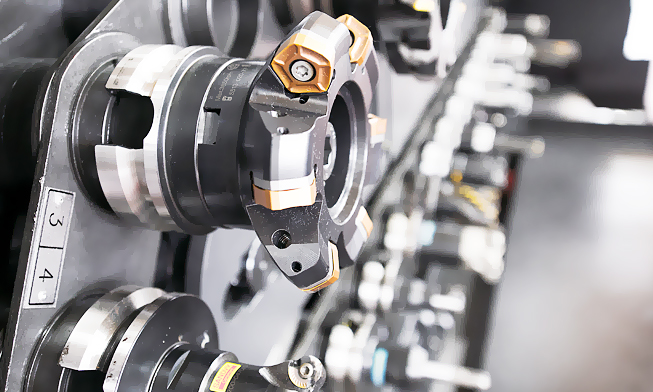

| No. of Tools | EA | 40 |
| Tool Change Time (Chip To Chip) |
sec | 7.5 |
| No. of Pallets | EA | 2 |
| APC Type | – | DIRECT TURN |
| Pallet Change Time | sec | 19 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
