OKK - HMC

Available Option(s):

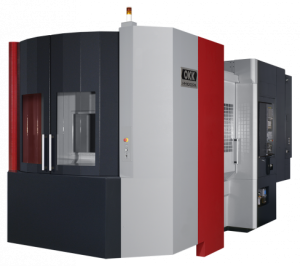

  • HM1000s
    Main Specification
    X Axis Travel1400(55.12″)
    Y Axis Travel1100(43.31″)
    Z Axis Travel1000(39.37″)
    Rapid Tranverse Rate48m/mn(1889ipm)
    Spindle Speeds35 to 12,000 (OP: 8,000 Gear)
    Spindle Motor40/33HP
    Magazine Capacity60 (OP: 40, 80, 116, 176, 300)
    Table Size1000 (39.37″)
    Spindle TaperNo.50
  • OKK HM1250S
    Main Specification
    X Axis Travel1700(66.93″)
    Y Axis Travel1400(55.12″)
    Z Axis Travel1240(48.82″)
    Rapid Tranverse Rate48m/mn(1889ipm)
    Spindle Speeds35 to 8,000
    Spindle Motor50/40HP
    Magazine Capacity60 (OP: 40, 80, 116, 176, 300)
    Table Size1250 (49.21″)
    Spindle TaperNo.50
  • okk HM1600
    Main Specification
    X Axis Travel2400mm (94.49″)
    Y Axis Travel1650mm ( 64.96″)
    Z Axis Travel1750mm (68.90″)
    Rapid Tranverse RateXYZ: 42 m/min-1 ( 1654 ipm)
    Spindle Speeds*1 20 ~ 4000 min-1 *2 20~8000 min-1 *3 35 ~ 12000 min-1
    Spindle Motor*1 30/25 HP *2 30/25HP *3 40/34HP
    Table Size1600 (62.99″) x 1250 (49.21″)
    Spindle TaperNo.50
    Controller TypeFANUC 31-iA5
    Cutting Feed RateXYZ: 1 ~ 20,000 mm/min-1 (0.04 ~ 788ipm)

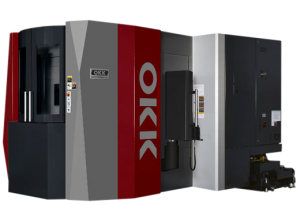

  • OKK HM500s
    Main Specification
    X Axis Travel630 (24.80″)
    Y Axis Travel620 (24.41″)
    Z Axis Travel710 (27.95″)
    Rapid Tranverse Rate54m/mm (2126″)
    Spindle Speeds35 – 10000 (op. 100 – 15,000)
    Spindle Motor30/25HP
    Magazine Capacity60 (op: 40, 80, 120)
    Table Size500 (19.68″)
    Spindle TaperNo. 40

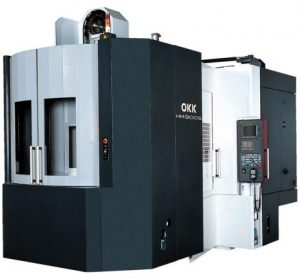

  • OKK HM800s
    Main Specification
    X Axis Travel1050(41.34″)
    Y Axis Travel900(35.43″)
    Z Axis Travel880(34.65″)
    Rapid Tranverse Rate75m/min (2,953ipm)
    Spindle Speeds35 to 12,000 (OP: 8,000 Gear)
    Spindle Motor40/33HP
    Magazine Capacity60 (OP: 40, 80, 116, 176, 300)
    Table Size800 (31.49″)
    Spindle TaperNo.50
  • OKK HMC500
    Main Specification
    X Axis Travel760mm (29.92″)
    Y Axis Travel760mm (29.92″)
    Z Axis Travel800mm (31.50″)
    Spindle Speeds15,000 RPM
    Spindle Motor37KW (50HP)
    Tool ShankCAT40
    Pallet Dimension500mm (19.68″)

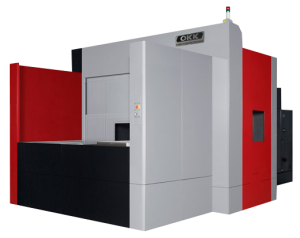

  • MCH10000
    Main Specification
    X Axis Travel1600 (62.99″)
    Y Axis Travel1270 (50.00″)
    Z Axis Travel1200 (47.24″)
    Rapid Tranverse Rate24m/min (944 IPM)
    Spindle Speeds20 to 6,000 RPM
    Spindle Motor35/30 HP
    Magazine Capacity60 (OP: 116, 176)
    Table Size1,000 (39.37″)
    Spindle TaperNo. 50
  • MCH5000R
    Main Specification
    X Axis Travel800(31.50″)
    Y Axis Travel700(27.56″)
    Z Axis Travel880(34.65″)
    Rapid Tranverse Rate30m/min (1182ipm)
    Spindle Speeds30 to 6000
    Spindle Motor30 HP
    Magazine Capacity60
    Spindle TaperCat 50 Big Plus
    Pallet Dimension500x500mm (19.68″)
    Controller TypeFanuc 31iB5
    Max. Work Dia/Height850mm (33.46″)dia/1000mm (39.37″)Height
  • MCH8000R

    Main Specification

    Travel(X/Y/Z)1300x1200x1200mm
    Table size□800mm
    Max. loadable weight3000kg
    Rapid speed (X/Y/Z)24m/min
    Spindle speed4500(OP:6000)min-1
    Spindle taperNo. 50
    Magazine capacity60 (OP:120,240)
