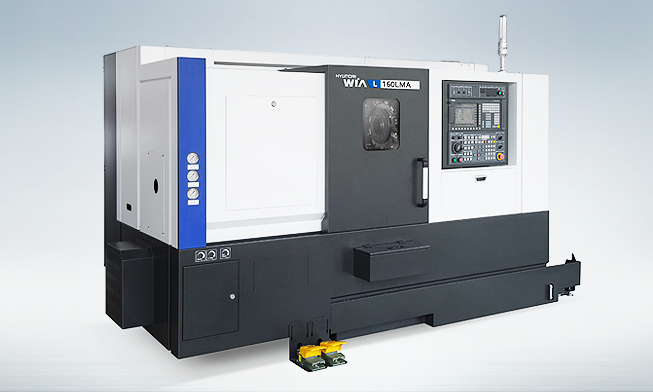

Compare Hyundai Wia L160MA with other machines in its class 6 inch, Horizontal Turning Centers, Hyundai Wai, Live Tooling Turret
Specifications
| Description | Unit | L160MA |
|---|---|---|
| Max Turning Dia | in | 12.2″ |
| Max Turning Length | in | 15.3″ |
| Chuck Size | in | 6″ |
| Driving Method | – | Belt |
| Spindle RPM | r/min | 6,000 |
| Spindle Output | hp | 15/10 |
| Spindle Torque | ft.lbs | 51.6/35.4 |
| Travel(X/Z) | in | 8.66/15.75 |
| Rapid Travel(X/Z) | in/min | 1417/1417 |
| Slide Type | – | LM |
| No. of Tools | EA | 12 |
| Tool Size | in | 1″/1.5″ |
| Milling Tool Speed | r/min | 5,000 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
