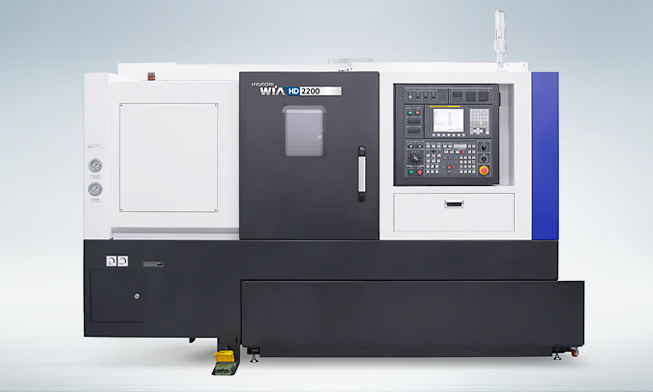

Hyundai Wia HD2200

Compare Hyundai Wia HD2200 with other machines in its class , , ,

In stock

Specifications

DescriptionUnitHD2200
Max Turning Diain15
Max Turning Lengthin22.25
Chuck Sizein8″
Driving MethodBelt
Spindle RPMr/min4,000
Spindle Output (Max/Cont.)hp25/20
Spindle Torque (Max/Cont.)ft.lb152 / 92.4
Travel(X/Z)in8.5/22.8
Rapid Travel(X/Z)in/min945/1181
Slide TypeBOX
No. of ToolsEA12
Tool Size (ID / OD)in1″ / 1.5″

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Hyundai Wia HD2200

Features

  • 45° slanted one-piece rigid bed structure
  • Minimal thermal distortion
  • User-friendly structure for high productivity
  • Best in class rapid traverse rate : 30m/min (Z-axis)
  • Reliable, high speed servo turret: 0.12sec/step
  • Box guide ways for heavy-duty cutting
  • Compact design, able to install within a limited space.
  • Ergonomic design for convenient access to chuck and tool

Specifications

DescriptionUnitHD2200HD2200CHD2200MHD2200MC
Max Turning Diain1511.811.8
Max Turning Lengthin22.2521.718.417.8
Chuck Sizein8″10″8″10″
Driving MethodBelt
Spindle RPMr/min4,0003,5004,0003,500
Spindle Output (Max/Cont.)hp25/20
Spindle Torque (Max/Cont.)ft.lb152 / 92.4298 / 181152 / 92.4298 / 181
Travel(X/Z)in8.5/22.88.5/19
Rapid Travel(X/Z)in/min945/1181
Slide TypeBOX
No. of ToolsEA12
Tool Size (ID / OD)in1″ / 1.5″

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
