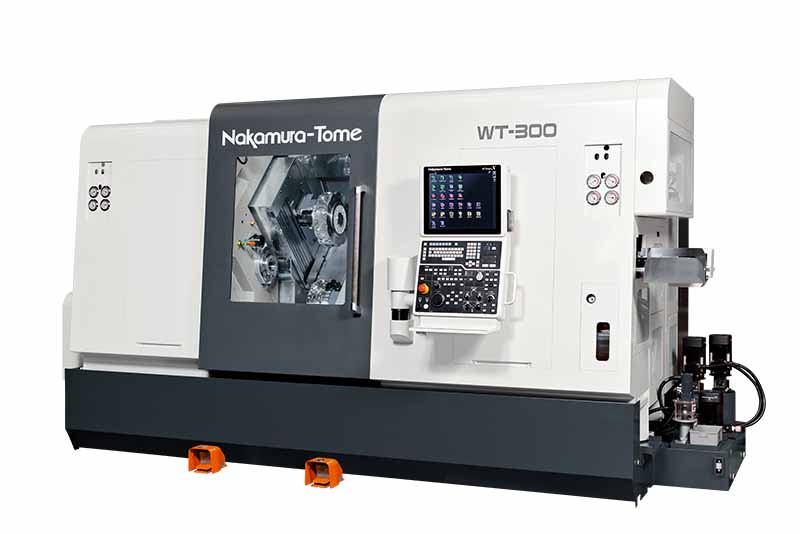

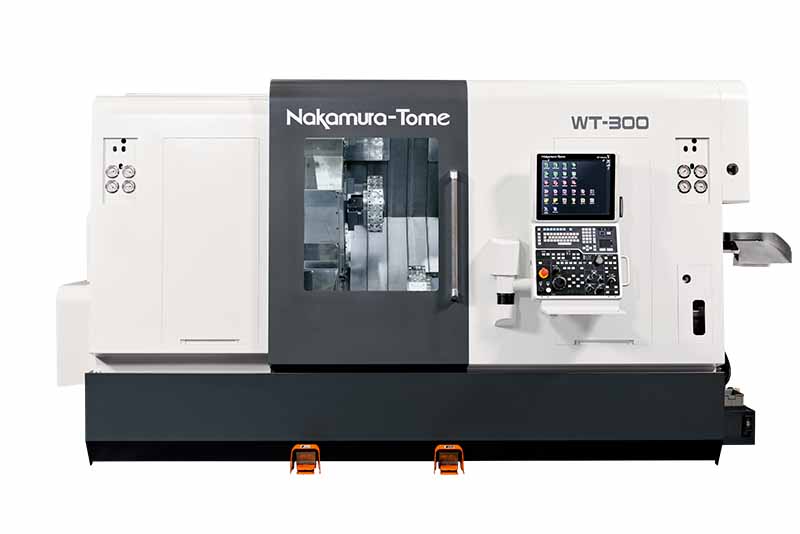

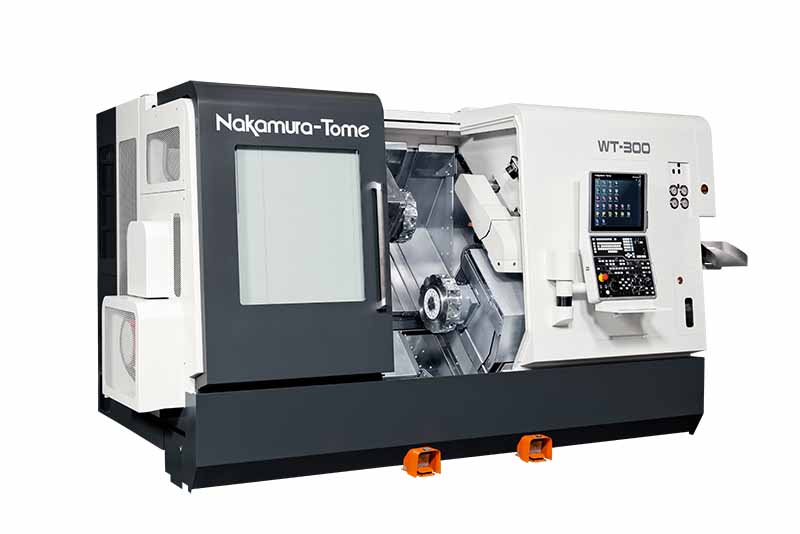

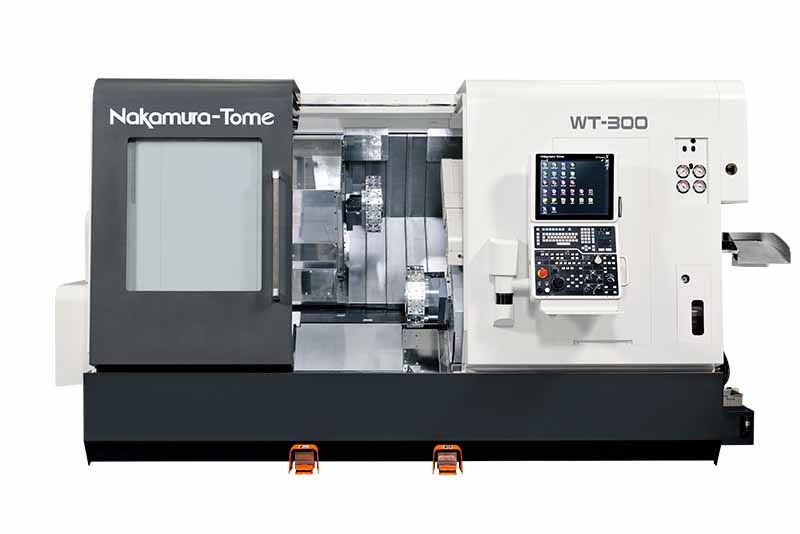

Compare Nakamura Tome WT300 with other machines in its class 10 inch, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome
Specifications:
| Capacity | ||||
|---|---|---|---|---|
| Capacity | ø3.2 in ( 80) / ø4 (102) (op.) in (mm) | |||
| Max Turning Diameter | 10.6 (270) in (mm) | |||
| Distance Between Spindles | max 43.3 (1100) / min 9.8 (250) in (mm) | |||
| Max Turning Length | 30.7 (780) in (mm) | |||
| Bar Capacity | 4 (102) (op.) in (mm) | |||
| Bar Capacity L-Spindle | 3.2 in (80 ) in (mm) | |||
| Bar Capacity R-Spindle | 2.6 (65) in (mm) | |||
| Chuck size | 10″ | |||
| Axis travel | ||||
| Slide travel (X1/X2) | 7.4 (188) / 7.7 (195) in (mm) | |||
| Slide travel (Z1/Z2) | 30.7 (780) / 30.7 (780) in (mm) | |||
| Slide travel (Y) | ±2.4 (60) in (mm) | |||
| Slide Travel (B) | 33.5 (850) in (mm) | |||
| Rapid Feed (X1/X2) | 630 (16) / 630 (16) in/min (m/min) | |||
| Rapid Feed (Z1/Z2) | 1063 (27) / 1063 (27) in/min (m/min) | |||
| Rapid feed (B) | ||||
| Rapid feed (Y) | ||||
| LEFT SPINDLE | ||||
| Spindle speed | 3500 / 2500 rpm | |||
| Spindle Nose | A2-8 | |||
| Hole Through Draw Tube | 3.2 (81) / 4 (103) in (mm) | |||
| Right Spindle 2.5 in (80 ) | ||||
| Spindle speed | 4500 rpm | |||
| Spindle Speed Range | Stepless | |||
| Spindle Nose | A2-6 | |||
| Hole Through Draw Tube | 2.5 (66) in (mm) | |||
| C-AXIS | ||||
| Least Input Increment | 1E-3 degree | |||

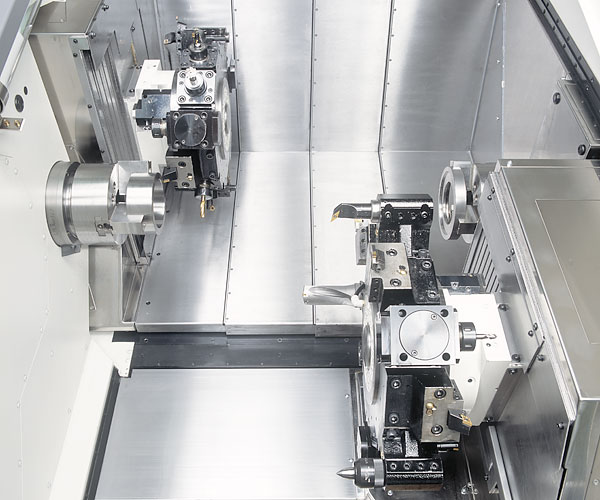

| Turret | ||||
| Number of Tool Stations | 24 | |||
| Rotary system/Number of driven-tool stations | 24 | |||
| ROTATING TOOL | ||||
| Rotary System | Individual Rotation | |||
| Spindle Speed | 6000 rpm | |||
| Spindle Speed Range | Stepless | |||
| Number of Rotation Tool Station | 12×2 | |||
| DRIVE MOTOR POWER | ||||
| Main Spindle | 25 HP | |||
| Sub Spindle (op.) | 25 | |||
| Driven Tool Spindle | 7.5 HP | |||
| General | ||||
| Machine weight | 30865 (14000) lbs (kg) | |||
