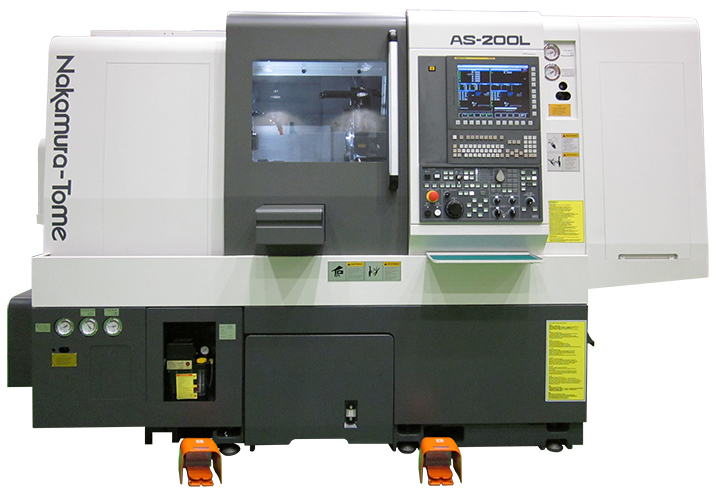

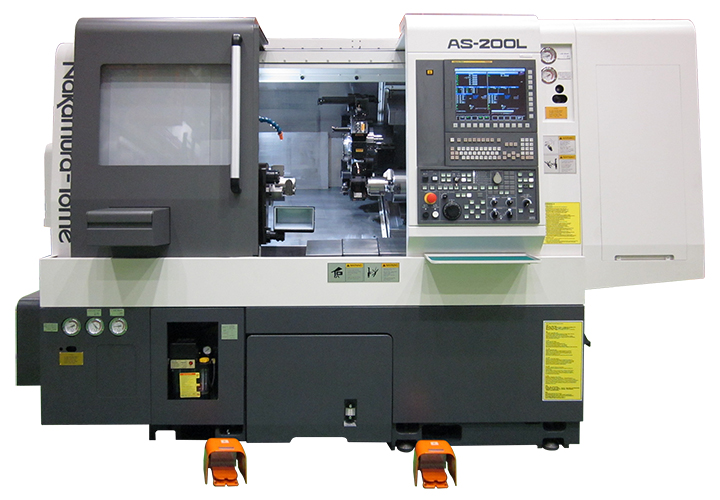

Compare Nakamura Tome AS 200LMYS with other machines in its class 8 inch, Horizontal Turning Centers, Live Tooling & Sub-Spindle, Nakamura Tome
Specifications:
| Capacity | ||||
|---|---|---|---|---|
| Swing Over Bed | 15.8 (400) in (mm) | |||
| Max Workpiece Swing Diameter | 12.6 (320) in (mm) | |||
| Max Turning Diameter | 13.4 (340) in (mm) | |||
| Distance Between Spindle Noses | 31.5 in (mm) | |||
| Max Turning Length | 22.5 (570) in (mm) | |||
| Bar Capacity | 2.6 (65) in (mm) | |||
| Bar Capacity Sub | 1.7 (42) in (mm) | |||
| Chuck size | 8 (203) in (mm) | |||
| Axis travel | ||||
| Slide travel (X) | 9 (227.5) in (mm) | |||
| Slide travel (Z) | 23 (585) in (mm) | |||
| Slide travel (Y) | ±1.6 (41)(op.) in (mm) | |||
| Slide Travel (B) | ||||
| Rapid feed (X) | 945 (24) in/min (m/min) | |||
| Rapid feed (Z) | 1418 (36) in/min (m/min) | |||
| Rapid feed (B) | ||||
| Rapid feed (Y) | 236 (6)(op.) in/min (m/min) | |||
| Spindle | ||||
| Spindle speed | 4500 rpm | |||
| Spindle Speed Range | Stepless | |||
| Spindle Nose | A2-6 | |||
| Hole Through Draw Tube | 2.5 ( 65mm) in (mm) | |||
| C-AXIS | ||||
| Least Input Increment | 1E-3 degree | |||
| Turret | ||||
| Number of Tool Stations | 12 | |||
| Rotary system/Number of driven-tool stations | 24 | |||
| MILLING TOOLS | ||||
| Spindle Speed | 6000 rpm | |||
| Number of Milling-Tool Stations | 12 | |||
| ROTATING TOOL | ||||
| Rotary System | Individual Rotation | |||
| Spindle Speed | 6000 rpm | |||
| Spindle Speed Range | Stepless | |||
| Number of Rotation Tool Station | 12 | |||
| DRIVE MOTOR POWER | ||||
| Main Spindle | 20 HP | |||
| Sub Spindle (op.) | 10 HP | |||
| Driven Tool Spindle | 7.5 HP | |||
| General | ||||
| Machine weight | 11023 (5000) lbs (kg) | |||
