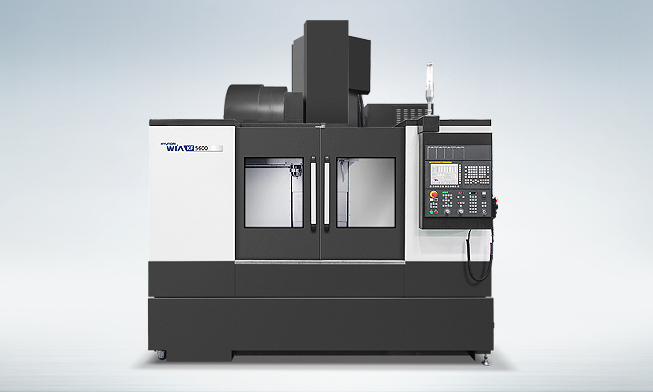

Compare Hyundai Wia KF5600 with other machines in its class 40 Taper, Hyundai Wia Vertical Machine Centers, Vertical Machine Centers
Travel (X / Y / Z)
43.3" / 20.05" / 20.47"
43.3" / 20.05" / 20.47"
Specifications
| Description | Unit | KF5600(STD) |
|---|---|---|
| Table Size | in | 49.21×22 |
| Max. Load Capacity | kg | 1,000 |
| Spindle Driving Method | – | Direct |
| Spindle Taper | – | BBT40 |
| Spindle RPM | r/min | 8,000 |
| Spindle Power | hp | 20/15 |
| Spindle Torque | ft.lbs | 432/105.5 |
| Travel(X/Y/Z) | in | 43.3″ / 20.05″ / 20.47″ |
| Rapid Feed Rate(X/Y/Z) | in/min | 1575/1575/1417 |

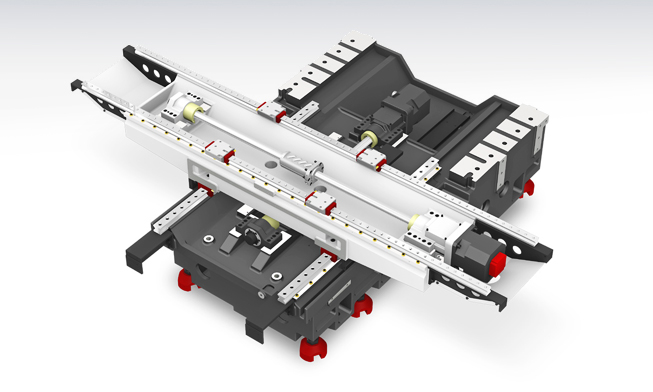

| Slide Type | – | LM |

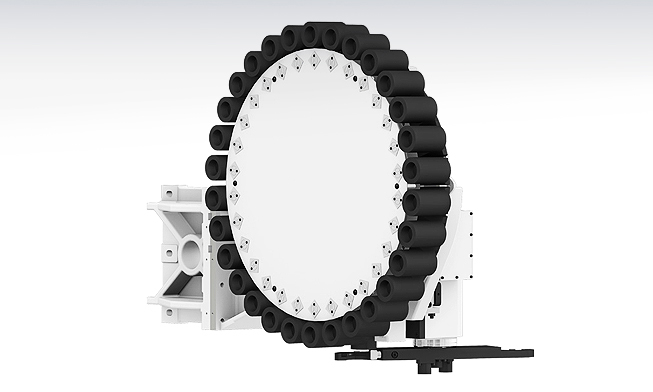

| No. of Tools | EA | 30 |
| Tool Change Time (Chip To Chip) |
sec | 3.2 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
