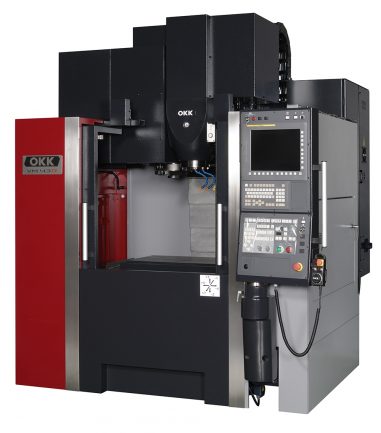

Compare OKK VM43R with other machines in its class 40 Taper, 50 Taper, OKK - Vertical Machines Centers, Vertical Machine Centers
Main Specification
| X Axis Travel | 630mm (24.80″) |
| Y Axis Travel | 430mm (16.93″) |
| Z Axis Travel | 460mm (18.11″) |
| Rapid Tranverse Rate | XY: 30m/min-1 (1181ipm), Z: 20m/min-1 (787 ipm) |
| Spindle Speeds | 8000 RPM Gear (OP: 6000) |
| Spindle Motor | 10/7.5HP |
| Magazine Capacity | 20 (OP:30) |
| Spindle Taper | No. 40/ No. 50 |
| Controller Type | Mitsubishi/FANUC |
