OKK HM-X8000

Compare OKK HM-X8000 with other machines in its class , ,

In stock

Main Specification
X Axis Travel51.18″ (1300mm)
Y Axis Travel43.31″ (1100mm)
Z Axis Travel61.02″ (1550mm)
A Axis Travel-110~+40
Spindle Speeds35~12000RPM
Spindle Motor40HP
Magazine Capacity60
Spindle Taper50 Taper Big Plus
Pallet Dimension800mm X 800mm
Controller TypeFanuc 31iB5

As with all OKKs we paid special attention to the rigidity of the cast body, built solid and features our massive liner roller guides and large-diameter ball screws for the feed system, allowing the HM-X Series to easily cut exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.

The HM-X8000 a High Power 50 Taper with Dual Anchored Core Chilled Ball Screws and Linear Cross Roller Guides are used successfully by many of our premier Aerospace Customers who have put them through some of the most extensive tests and achieved more than impressive results in Titanium, a material that demands Box Ways from our competitors.

FEATURES & BENEFITS

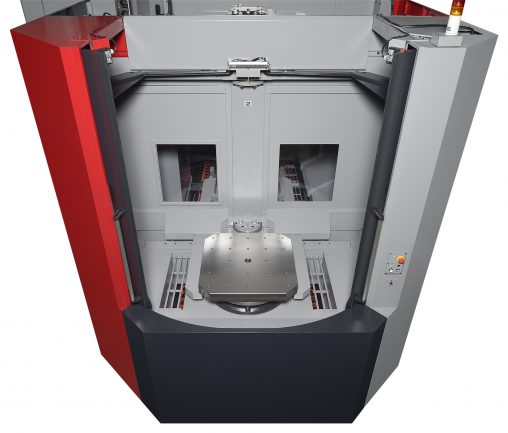

  • New innovative trunnion table
  • Direct-turn APC
  • Tilt Head A-Axis
  • Heavy load capacity linear roller guides
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space
