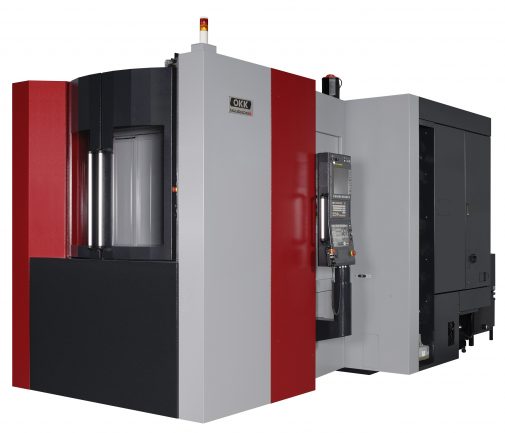

OKK MCH5000R

cnc machine qoute
MCH5000R
MCH5000R
MCH5000R
OKK MCH5000R
Roll over image to zoom in
Click to open expanded view

Compare OKK MCH5000R with other machines in its class , ,

In stock

Main Specification
X Axis Travel 800(31.50″)
Y Axis Travel 700(27.56″)
Z Axis Travel 880(34.65″)
Rapid Tranverse Rate 30m/min (1182ipm)
Spindle Speeds 30 to 6000
Spindle Motor 30 HP
Magazine Capacity 60
Spindle Taper Cat 50 Big Plus
Pallet Dimension 500x500mm (19.68″)

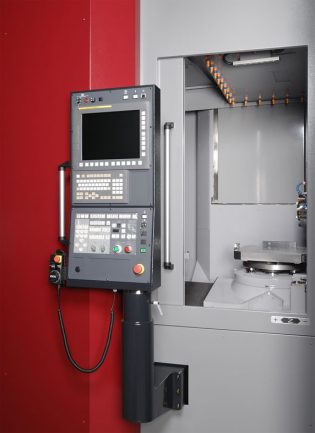

Controller Type Fanuc 31iB5
Max. Work Dia/Height 850mm (33.46″)dia/1000mm (39.37″)Height
Categories: , ,

OKK Machine Tools

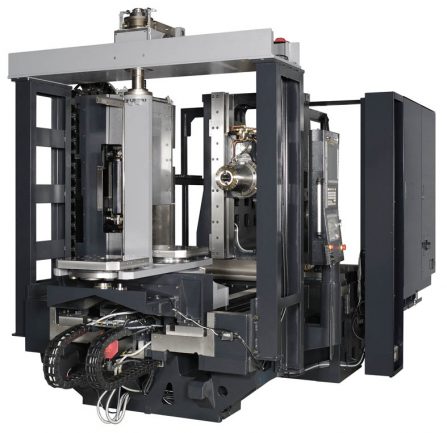

As with all OKKs we paid special attention to the rigidity of the cast body, built solid and features our massive liner roller guides and large-diameter ball screws for the feed system, allowing the MCH-R Series to easily cut titanium and other exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.
FEATURES & BENEFITS
  • Heavy load capacity linear roller guides
  • High rigidity column
  • Core chilled pre-tensioned and double-anchored ball screws
  • High load capacity feed motors
  • Space saving design for economical use of floor space
  • Dual coil-type chip conveyors
