Hyundai Wia HS4000

cnc machine qoute
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Hyundai hs Series
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia HS4000 with other machines in its class , ,

In stock

Travel (X / Y / Z)
24.4" / 22" / 25.6"

Specifications

Description Unit HS4000
Pallets Size in 15.75 x 15.75
Max. Load Capacity lbs 1102
Spindle Driving Method – Built in
Spindle Taper – BBT40
Spindle RPM r/min 15,000
Spindle Power hp 33.5/30
Spindle Torque ft-lbs 123/70
Travel(X/Y/Z) in 24.4/22/25.6
Rapid Feed Rate(X/Y/Z) in/min 2362/2362/2362
Slide Type – LM
No. of Tools EA 40
No. of Pallets EA 2
APC Type – DIRECT TURN

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Features

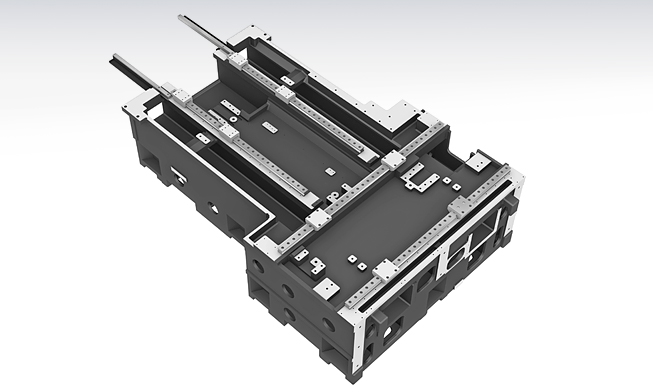

  • Reverse “T” Bed construction
  • Best-in-class rapid traverse rate of all axis 60m/min
  • Heavy duty Built-in Spindle
  • High Speed rotary pallet changer
  • Step type bed structure (HS4000M | 5000M/50)
  • Tool and pallet changer equipped with the latest servo technology (HS4000M | 5000M/50)

Specifications

Description Unit HS4000i HS4000 HS4000M
Pallets Size in 15.75 x 15.75
Max. Load Capacity lbs 1102
Spindle Driving Method – Built in
Spindle Taper – BBT40
Spindle RPM r/min 12,000 15,000
Spindle Power hp 33.5/30
Spindle Torque ft-lbs 123/70
Travel(X/Y/Z) in 24.4/22/25.6
Rapid Feed Rate(X/Y/Z) in/min 1968/1968/1968 2362/2362/2362
Slide Type – LM
No. of Tools EA 40
No. of Pallets EA 2
APC Type – DIRECT TURN

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
