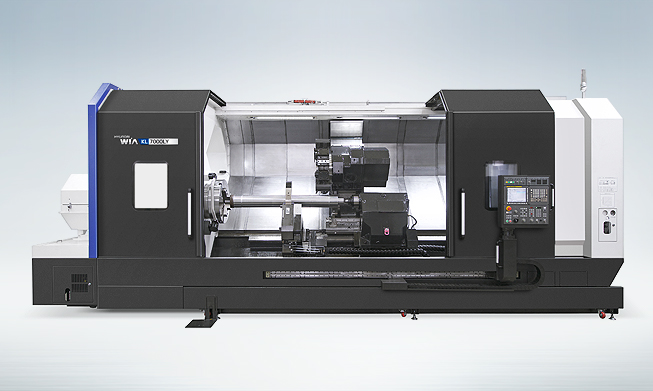

Compare Hyundai Wia KL7000LY with other machines in its class 24 inch, Horizontal Turning Centers, Hyundai Wai, Live Tooling Turret
Specifications
| Description | Unit | KL7000LY |
|---|---|---|
| Max Turning Dia | in | 36 |
| Max Turning Length | in | 128 |

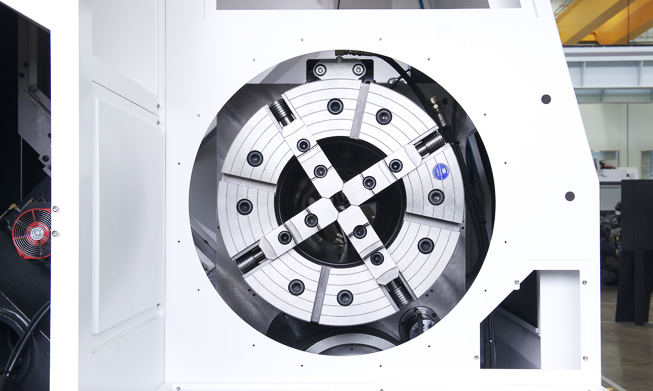

| Chuck Size | in | 24″ |

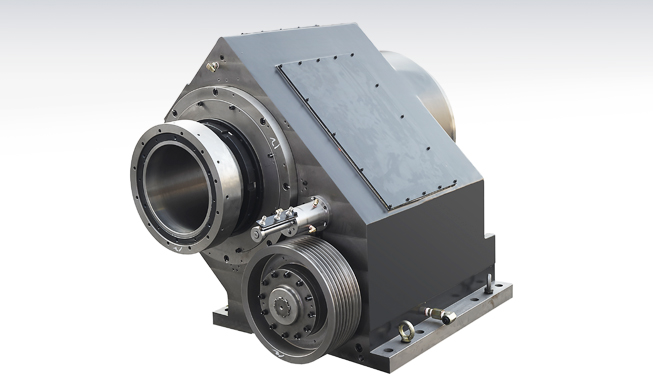

| Driving Method | – | Gear |
| Spindle RPM | r/min | 1,500 |
| Spindle Output (max/cont.) | hp | 60 / 50 |
| Spindle Torque (max/cont.) | ft.lbs | 5109 / 4204 |
| Travel(X/Y/Z) | in | 19.7/8.7/129 |
| Rapid Travel(X/Y/Z) | in/min | 472/394/472 |
| Slide Type | – | BOX |
| No. of Tools | EA | 12 |
| Tool Size (ID/OD) | in | 1.25″ / 3″ |
| Milling Tool Speed | r/min | 3,000 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
