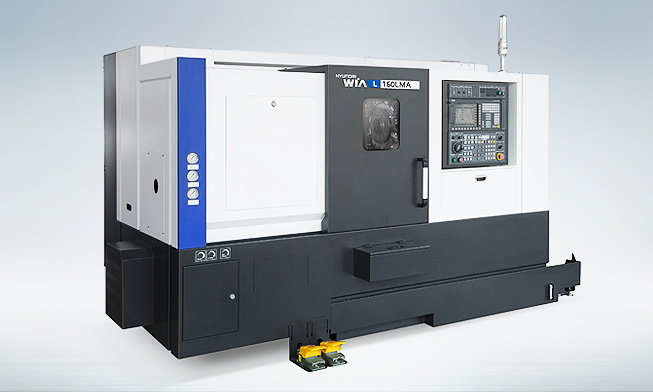

Compare Hyundai Wia L160LMSA with other machines in its class 6 inch, Horizontal Turning Centers, Hyundai Wai, Live Tooling & Sub Spindle
Specifications
| Description | Unit | L160LMSA |
|---|---|---|
| Max Turning Dia | inch | 12.2″ |
| Max Turning Length | inch | 21.7″ |
| Chuck Size | inch | Main 6″ Sub 6″ |
| Driving Method | – | Belt |
| Spindle RPM | r/min | 6,000 |
| Spindle Output | HP | 15/10 |
| Spindle Torque | lbf.ft | 51.6/35.2 |
| Travel(X/Z) | inch | 8.7″/22″/23.2″ |
| Rapid Travel(X/Z) | in/min | 1417 / 1417 /1181 |
| Slide Type | – | LM |

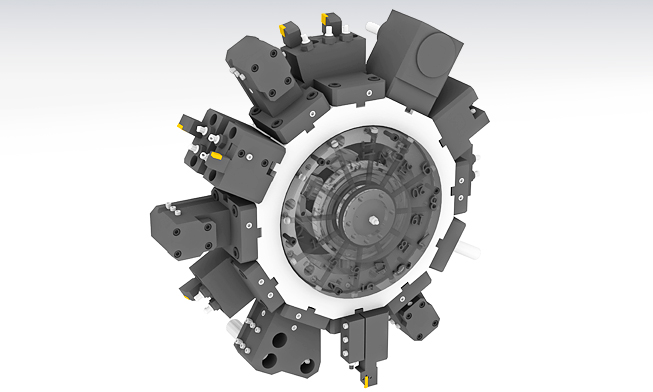

| No. of Tools | EA | 12 |
| Tool Size (ID/OD) | inch | 1″/1.5″ |
| Milling Tool Speed | r/min | 5,000 |
| CNC | – | H/W FANUC i |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
