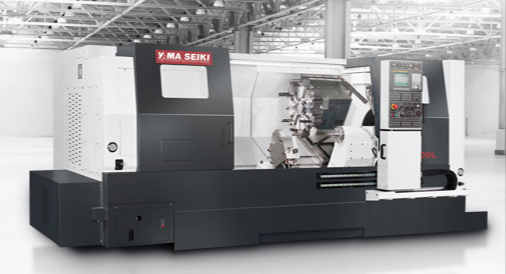

Roll over image to zoom in
Compare Yama Seiki GS-2800M with other machines in its class 10 inch-12, Horizontal Turning Centers, Live Tooling & Sub-Spindle-123, Live Tooling Turret-123, Yama Seiki-1
Specifications
| Description | Unit | GS-2800M | |
| CAPACITY | Max. / Swing over saddle | mm(in) | 630 mm (24.8″) |
| Max. Turning Diameter | mm(in) | 399 mm (15.7″) | |
| Max. Turning Length | mm(in) | 594 mm (23.4″) | |
| Bar Capacity | mm(in) | 76 mm (2.95’) | |
| SPINDLE | Chuck Size | (in) | (10″) |
| Hole through spindle | mm(in) | 90mm (3.54”) | |
| Spindle Speed (rpm) | rpm | 3,500 rpm | |
| Motor output ( cont. / 30 min.) | Hp / kW | 15 / 18.5 kW ( 20 / 25 HP ) | |
| Motor (Max/Cont.) | kW(HP) | ||
| Torque (Max/Cont.) | N.m | ||
| Spindle Type | – | Belt-Drive | |
| Spindle Nose | – | A2-8 | |
| FEED | Travel (X/Z) | mm(in) | 30mm(1.81”) / 570mm (22.44”) |
| Rapid Travel (X/Z) | m/min | 30m/min | |
| Slide Type | – | Hardened & Ground Box Ways | |
| X-axis servo motor | HP (KW) | 2.7 HP(3.6 kW) | |
| Z-axis servo motor | HP (KW) | 4.5 HP (6.0 kW) | |
| BLOCK TOOL | No. of Tool / Stations | T | 12 |
| Tool Size | OD mm(in) | 25mm(1”) | |
| ID mm(in) | 40mm(1”) | ||
| TANK CAPACITY | Coolant Tank | Gallon / litre | 95 gal. (360L) |
| Lubricating Tank | ℓ(gel) | ||
| POWER SUPPLY | Electric Power Supply | kVA | 40 kVA |
| Thickness of Power Cable | Sq | ||
| Voltage | V/Hz | ||
| MACHINE | Dimensions (L×WxH) |
mm(in) | 4,520 × 2,200 × 1,870 mm (177.95″ x 86.61″ x 73.62”) |
| Weight | kg(lb) | 8,500 Kg (18,735 lb. ) | |
| NC | Controller | FANUC Oi-TD |
