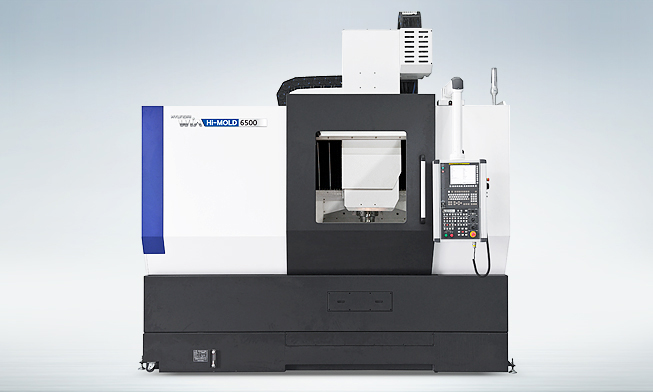

Hyundai Wia Hi-MOLD6500

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia Hi-MOLD6500 with other machines in its class , ,

In stock

Specifications

Description Unit Hi-MOLD6500
Table Size in 47.24 x 25.59
Max. Load Capacity kg 1000
Spindle Driving Method – Built in
Spindle Taper – BBT40
Spindle RPM r/min 20,000
Spindle Power hp 30/25
Spindle Torque ft.lbs 39/27.3
Travel(X/Y/Z) in 43.3/25.59/21.65
Rapid Feed Rate(X/Y/Z) in/min 1575/1575/1575
Slide Type – LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Features

  • Wall type machining center for utmost quality of molding
  • High-precision spindle design with precision angular contact bearing
  • 20,000 rpm built-in spindle for high quality surface finish (Option : 24,000 rpm)
  • Ball screw nut cooling system on all axes is standard
  • Hyundai WIA mold package delivers optimal processing of mold parts

Specifications (metric)

Description Unit Hi-MOLD6500
Table Size mm 1,200 x 650
Max. Load Capacity kg 1000
Spindle Driving Method – Built in
Spindle Taper – BBT40
Spindle RPM r/min 20,000
Spindle Power kW 22/18.5
Spindle Torque N.m 53/37
Travel(X/Y/Z) mm 1,100/650/550
Rapid Feed Rate(X/Y/Z) m/min 40/40/40
Slide Type – LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
