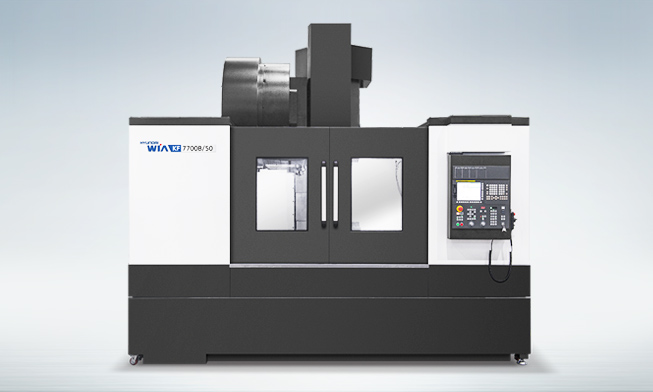

Hyundai Wia KF7700B

cnc machine qoute
Roll over image to zoom in
Click to open expanded view

Compare Hyundai Wia KF7700B with other machines in its class , ,

In stock

Travel (X/Y/Z)
59" /30″ /25″

Specifications

Description Unit KF7700B
Table Size in 65″ × 26.38″
Max. Load Capacity kg 1,500
Spindle Driving Method – Direct
Spindle Taper – BBT40
Spindle RPM r/min 8,000
Spindle Power hp 20/15
Spindle Torque ft.lbs 211/105.5
Travel(X/Y/Z) in 59″ /30″ /25″
Rapid Feed Rate(X/Y/Z) in/min 1181/1181/945
Slide Type – BOX
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 3.5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Categories: , ,

Features

  • Box guideways for exceptional feeding during heavy duty cutting
  • High-powered, high-torque main spindle for superb heavy duty cutting
  • Main spindle with gear drive for high-power and high torque (BT50 Option)
  • Latest Servo ATC for highly efficient tool exchanging

Specifications (metric)

Description Unit KF7700B KF7700B(OPT1) KF7700B/50 KF7700B/50(OPT1)
Table Size mm 1650×760
Max. Load Capacity kg 1,500
Spindle Driving Method – Direct Gear
Spindle Taper – BBT40 BBT50
Spindle RPM r/min 8,000 12,000 8,000 8,000
Spindle Power kW 15/11 18.5/11 15/11 18.5/15
Spindle Torque N.m 286/143 118/70 286/143 586/475
Travel(X/Y/Z) mm 1500/760/635
Rapid Feed Rate(X/Y/Z) m/min 30/30/24
Slide Type – BOX
No. of Tools EA 30 24
Tool Change Time
(Chip To Chip)		 sec 3.5 5.5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Specifications

Description Unit KF7700B KF7700B(OPT1) KF7700B/50 KF7700B/50(OPT1)
Table Size in 65″ × 26.38″
Max. Load Capacity kg 1,500
Spindle Driving Method – Direct Gear
Spindle Taper – BBT40 BBT50
Spindle RPM r/min 8,000 12,000 8,000 8,000
Spindle Power hp 20/15 25/15 20/15 25/20
Spindle Torque ft.lbs 211/105.5 87/51.63 211/105.5 433/350
Travel(X/Y/Z) in 59″ /30″ /25″
Rapid Feed Rate(X/Y/Z) in/min 1181/1181/945
Slide Type – BOX
No. of Tools EA 30 24
Tool Change Time
(Chip To Chip)		 sec 3.5 5.5

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
