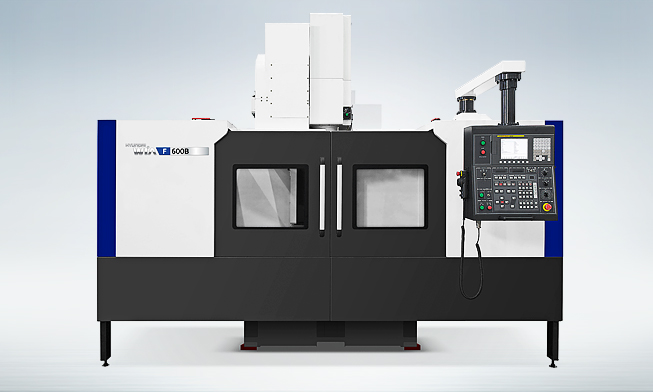

Compare Hyundai Wia F600B with other machines in its class 50 Taper, Hyundai Wia Vertical Machine Centers, Vertical Machine Centers
Travel (X / Y / Z )
45.27" / 23.62" / 23.62"
45.27" / 23.62" / 23.62"
Specifications
| Description | Unit | F600B |
|---|---|---|
| Table Size | mm | 1,600×600 |
| Max. Load Capacity | kg | 1000 |
| Spindle Driving Method | – | GEAR |
| Spindle Taper | – | BT50 |
| Spindle RPM | r/min | 4,500 |
| Spindle Power | kW | 15/11 |
| Spindle Torque | N.m | 731/535 |
| Travel(X/Y/Z) | mm | 1,150/600/600 |
| Rapid Feed Rate(X/Y/Z) | m/min | 24/24/24 |
| Slide Type | – | BOX |
| No. of Tools | EA | 20 |
| Tool Change Time (Chip To Chip) |
sec | 6.8 |
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalogue.
