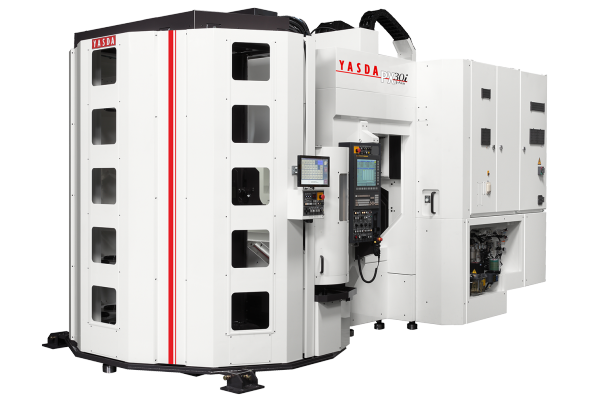

Yasda PX-30i

cnc machine qoute
Yasda PX30
Yasda PX30-Internal
Yasda PX30-Internal
Yasda PX30-Internal
Yasda PX30-Internal
Yasda PX30-hardmilling
yasda px30i structure
Roll over image to zoom in
Click to open expanded view

Compare Yasda PX-30i with other machines in its class , ,

In stock

Specifications

Travel X-axis travel 680mm
Y-axis travel 400mm
Z-axis travel 500mm
C-axis travel (Table rotation) 360°
B-axis travel (Table rotation) -125°～ +65°
Traverse rate Rapid traverse rate (X,Y,Zaxis) 60000mm/min
Feedrate(Baxis) MAX.75min-1
Feedrate(Caxis) MAX.125min-1
Feedrate(X,Y,Zaxis) 20000mm/min
Table Table working surface Φ185mm
Table loading capacity 80kg(80Nm)
Spindle The highest revolving speed 20000min-1
Spindle taper hole 7/24 taper,No.40(BT40)
Automatic tool changer Tool storage capacity MAX.314 tools
NC equipment FANUC 31i-MODEL B5
Categories: , ,

yasda machine tools

YASDA developed the 5-axis PX30i machine to supply customers with a top quality, highly reliable machine tool for the machine shop market and OEM users.  The PX30i is outstanding in versatile 5-axis applications, precision in parts, drilling, face milling, boring, milling from and also excellent for hardened steel, tough materials like titanium and inconel. The PX30i has an excellent design for automation, usability and productivity.

Yasda PX30-hardmilling

FEATURES & BENEFITS

  • 5 Axis High Precision Vertical Machining Center
  • Large Work Envelope
  • High Torque Spindle
  • High Speed Direct Drive Rotary Axis
  • Self-contained Multi Pallet Stacking System
  • Methods Tool Management System with Balluf Read Write
  • Methods Pallet Scheduling System
  • Space Saving Footprint
  • System 3R Coupling for Pallet Clamping
  • Rigid Machine Structure for Machining Various Material Types
  • Optical Scale Feedback for Precise Positioning
  • Probing Systems
OPTIONS
  • FANUC Functions

Basic Structure

yasda px30i structure

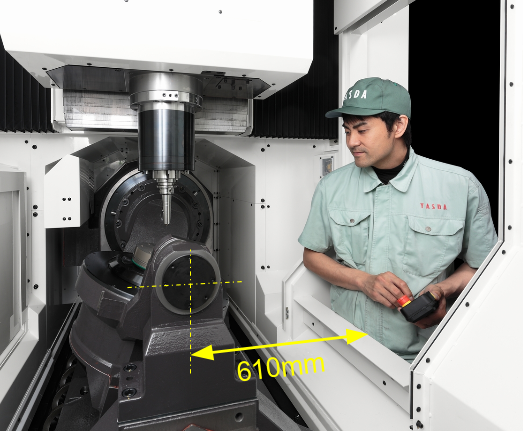

PX-30i Accessibility

The height of the pallet surface from the shop floor is 1085mm. It also has a large space of opened door, access to the pallet, workpiece, and tools.

yasda px30i space

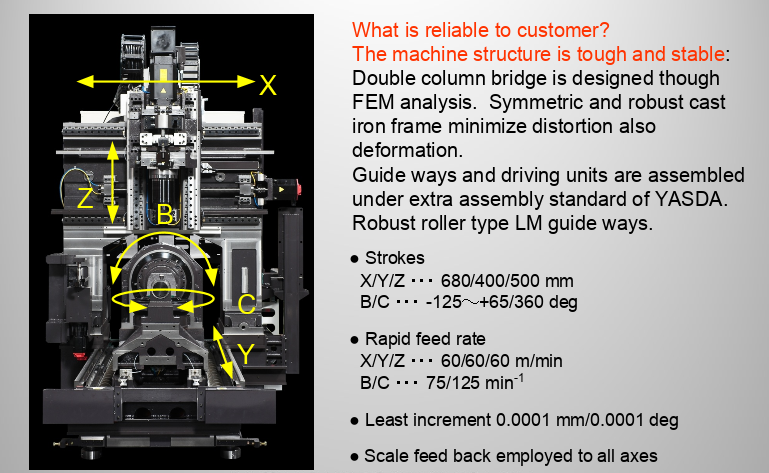

PX-30i Symmetrical Rigid Structure

What is reliable to the customer?
Yasda PX-30i structure is tough and stable with a double column bridge designed through FEM analysis. Symmetric and robust cast iron frame to minimize distortion and deformation.

yasda px-30i symmetrical rigid structure

See more at Yasda Website.
