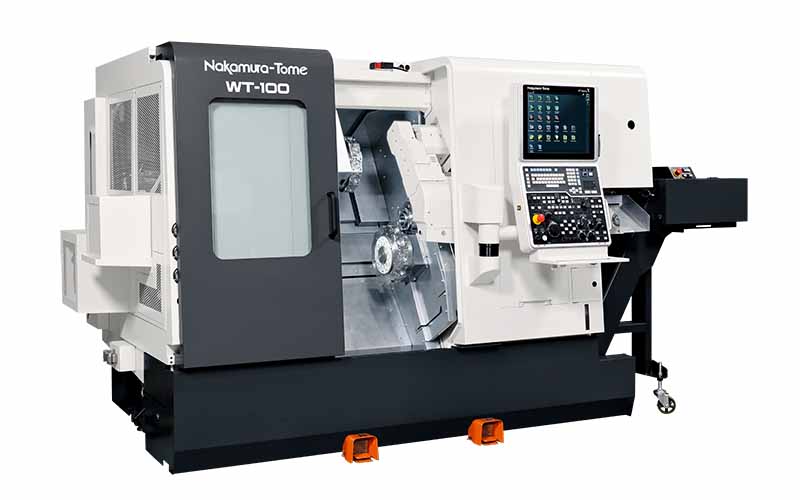

Compare Nakamura Tome WT100 with other machines in its class 6" chuck, Live Tooling & Sub-Spindle, Live Tooling Turret, Nakamura Tome, Standard Turret
Specifications:
| Capacity | ||
|---|---|---|
| Max. turning diameter/Max. turning length | 7.5″/19.8″ | |
| Distance between spindle nose | max. 29″ /min. 8.27″ | |
| Bar capacity | 1.65″ | |
| Chuck size | 6″ (165mm) | |
| Axis travel | ||
| Slide travel X1/X2 | 5″ / 5″ | |
| Slide travel Z1/Z2/B | 20″ / 20″ / 20.7″ | |
| Slide travel Y upper turret | ± 1.2″ | |
| Left spindle Right spindle | ||
| Spindle speed | 6,000min-1 | |
| Left spindle motor (max/cont.) | 15/10hp 55.6/28.5 ft.lbs | |
| Right spindle motor(max/cont.) | 15/10hp 55.6/28.5 ft.lbs | |
| Upper turret | ||
| Number of turrets | 1 | |
| Spindle speed | 6,000min-1 | |
| Type of turret head/Number of index positions | Dodecagonal/24 | |
| Driven motor power and torque (max/cont.) | 10/3hp 11.8/5.9 ft.lbs | |
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |
| Lower turret | ||
| Number of turrets | 1 | |
| Spindle speed | 6,000min-1 | |
| Type of turret head/Number of index positions | Dodecagonal/24 | |
| Driven motor power and torque (max/cont.) | 10/3hp 11.8/5.9 ft.lbs | |
| Rotary system/Number of driven-tool stations | Individual rotation/12 | |
| General | ||
| Floor space （L×W×H） | 90.5″ × 63.8″ × 76.4″ | |
| Machine weight | 5,650kg | |
