Hyundai Wia i-CUT400T

Compare Hyundai Wia i-CUT400T with other machines in its class , ,

In stock

Travel(X/Y/Z)
19.7″/15.7″/13″
Description Unit i-CUT400T
Table Size inch 25.6″×15.7″
Max. Load Capacity lb 661.4
Spindle Driving Method Direct
Spindle Taper BBT30
Spindle RPM r/min 12,000
Spindle Power HP 18.9/5.5
Spindle Torque lbf.ft 33.2/15.5
Travel(X/Y/Z) inch 19.7″/15.7″/13″
Rapid Feed Rate(X/Y/Z) m/min 56/56/56
Slide Type LM
No. of Tools EA 14
Tool Change Time
(Chip To Chip)
sec 1.89

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Features

  • High Speed Direct Spindle i-CUT400T : 12,000 [15,000]rpm / i-CUT400M : 24,000rpm
  • Spindle Acceleration/Deceleration 0 → 24,000 RPM : 1.6 sec.
  • Rapid Feedrate in Each Axis 56m/min (Z axis Acceleration/Deceleration up to “1.27G”)
  • Rigid Tapping up to 6,000rpm

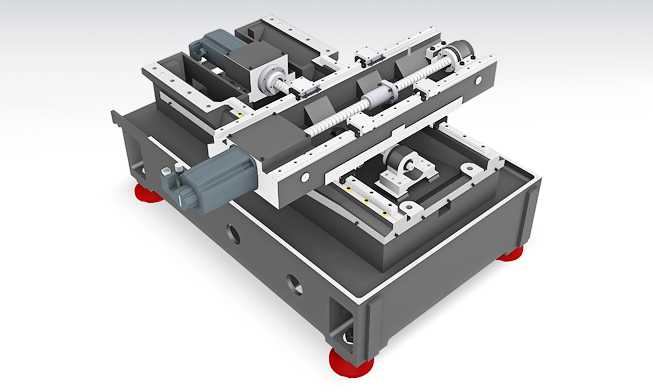

  • Weight reduction and added rigidity through FEM structural analysis

Specifications (metric)

Description Unit i-CUT400T i-CUT400M
Table Size mm 650×400 650×400
Max. Load Capacity kg 300 300
Spindle Driving Method Direct Direct
Spindle Taper BBT30 BBT30
Spindle RPM r/min 12,000 24,000
Spindle Power kW 14.1/4.1 22.6/3.5
Spindle Torque N.m 45/21 24/3.7
Travel(X/Y/Z) mm 500/400/330 500/400/330
Rapid Feed Rate(X/Y/Z) m/min 56/56/56 56/56/56
Slide Type LM LM
No. of Tools EA 14 14
Tool Change Time
(Chip To Chip)
sec 1.89 1.89

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.


Description Unit i-CUT400T i-CUT400M
Table Size inch 25.6″×15.7″ 25.6″×15.7″
Max. Load Capacity lb 661.4 661.4
Spindle Driving Method Direct Direct
Spindle Taper BBT30 BBT30
Spindle RPM r/min 12,000 24,000
Spindle Power HP 18.9/5.5 30.3/4.7
Spindle Torque lbf.ft 33.2/15.5 17.7/2.7
Travel(X/Y/Z) inch 19.7″/15.7″/13″ 19.7″/15.7″/13″
Rapid Feed Rate(X/Y/Z) m/min 56/56/56 56/56/56
Slide Type LM LM
No. of Tools EA 14 14
Tool Change Time
(Chip To Chip)
sec 1.89 1.89

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
