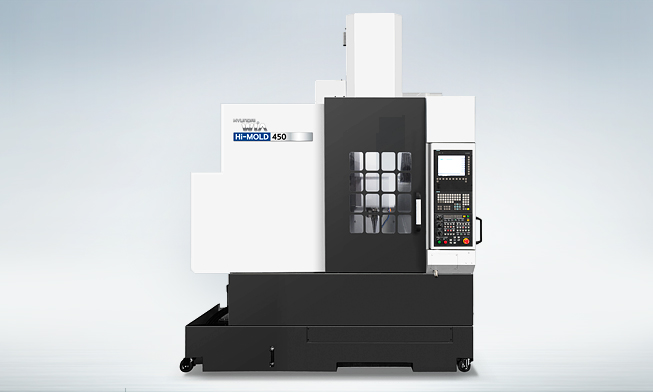

Hyundai Wia Hi-MOLD450

Compare Hyundai Wia Hi-MOLD450 with other machines in its class , , ,

In stock

Specifications

DescriptionUnitHi-MOLD450
Table Sizeinch33.7″×15.7″
Max. Load Capacitylb660
Spindle Driving MethodBuilt in
Spindle TaperHSK-A63
Spindle RPMr/min24,000
Spindle PowerHP44/33
Spindle Torquelbf.ft70.8/53.4
Travel(X/Y/Z)inch23.6″/17.7″/17.7″
Rapid Feed Rate(X/Y/Z)m/min50/50/50
Slide TypeLM
No. of ToolsEA24
Tool Change Time
(Chip To Chip)
sec5.5
CNCS840D

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Mold Machining

High Speed Machining Center for Mold Machining with highly precise spindle and optimal mold package

Features

  • Highly reliable bridge type machining center
  • Highly accurate main spindles with ultra-precise angular contact bearings
  • Built-in ultra-high-speed (40,000rpm) main spindle for the highest quality surface finish (Opt.)
  • Built-in 5-axis table to satisfy various processing needs (Hi-MOLD560/5A)
  • Hyundai WIA mold package delivers optimal processing of mold parts
  • Latest SIEMENS 828D control equipped with exceptional processing software

Specifications

DescriptionUnitHi-MOLD450Hi-MOLD560
Table Sizeinch33.7″×15.7″49.2″×23.6″
Max. Load Capacitylb6601,760
Spindle Driving MethodBuilt inBuilt in
Spindle TaperHSK-A63HSK-A63
Spindle RPMr/min24,00024,000
Spindle PowerHP44/3344/33
Spindle Torquelbf.ft70.8/53.470.8/53.4
Travel(X/Y/Z)inch23.6″/17.7″/17.7″39.3″/22″/17.7″
Rapid Feed Rate(X/Y/Z)m/min50/50/5050/50/50
Slide TypeLMLM
No. of ToolsEA2424
Tool Change Time
(Chip To Chip)
sec5.55.5
CNCS840DS840D

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
