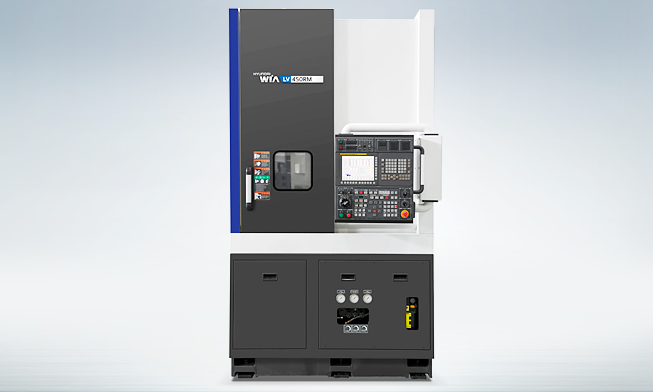

Hyundai Wia LV450RM/LM

Compare Hyundai Wia LV450RM/LM with other machines in its class , , ,

In stock

Specifications

Description Unit LV450RM/LM
Max Turning Dia in 18.3
Max Turning Length in 18.3
Chuck Size in 12″
Driving Method Belt
Spindle RPM r/min 3,000
Spindle Output (max/cont.) hp 30/25
Spindle Torque (max/cont.) ft.lbs 538/453
Travel(X/Z) in 12.2/19.5
Rapid Travel(X/Z) in/min 787/945
Slide Type LM
No. of Tools EA 12
Tool Size (ID/OD) in 1″ / 2″
Milling Tool Speed r/min 4,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.

Hyundai Wia LV450RM/LM

Features

  • Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
  • High/Low chucking to minimize material deformation is a standard feature
  • Designed for easy addition of automation and other peripheral accessories
  • This phrase doesn’t make any sense even in Korean. It needs to be deleted.
  • Minimal footprint for use of less shop floor space and ease of transportation
  • Available in “Right” and “Left” hand configurations to minimize pitch between spindle center lines for ease of operation and the addition of automation

Specifications

Description Unit LV450R/L LV450RM/LM
Max Turning Dia in 18.3
Max Turning Length in 18.3
Chuck Size in 12″
Driving Method Belt
Spindle RPM r/min 3,000
Spindle Output (max/cont.) hp 30/25
Spindle Torque (max/cont.) ft.lbs 538/453
Travel(X/Z) in 12.2/19.5
Rapid Travel(X/Z) in/min 787/945
Slide Type LM
No. of Tools EA 12
Tool Size (ID/OD) in 1″ / 2″
Milling Tool Speed r/min 4,000

Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
