Live Tooling

  • Specifications

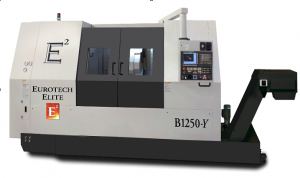

    Model B1250LY
    Maximum bar capacity 3.74”
    Maximum machining diameter 21.73”
    Maximum machining length 46”
    Maximum swing over diameter (bench) 26.7”
    MAIN SPINDLE
    Spindle Bore 3.74”
    Spindle speed range 3,000 RPM
    Geared headstock 1:1 and 4:1
    Spindle motor 40 HP
    Motor type Wide range
    Spindle nose ASA A2-8
    Y axis stroke 5.5”
    TURRET
    Turret indexing time 1 station 0.3 sec/pos
    Turret indexing type Bi-directional
    Number of stations 16
    TAILSTOCK
    Positioning travel 44.88”
    Quill Stroke 3.93”
    Quill diameter 3.34”
    Cylinder area sq. in 17.23
    Max Thrust 2,645.5lbs
    Flange for live center MT5
    REVOLVING TOOL ATTACHMENT TURRET
    Number of positions 16
    Drive motor-max. rating (Fanuc) 23 HP
    Speed range 6,000 RPM
    Engagement time immediate
    C AXIS CONTROL WITH SPINDLE POSITIONING
    Spindles Main
    Spindle positioning Full “C”
    Minimum command increment 0.001 degree
    Positioning system Spindle motor
    Degree of movement Programmable
    Rapid speed rate 100 RPM
    GENERAL INFORMATION
    Voltage required 400 volt AC, 3-phase
    Air required 80 psi @ 4 CFM
    MACHINING DIMENSIONS
    Width 87.4”
    Height 92.52”
    Length with chip conveyor 218”
    Machine weight with chip conveyor 18,519 lbs.
    ACCURACY
    Z axis repeatability accuracy +/-.00004”
    X  axis positioning accuracy +/-.00006”
    C axis positioning accuracy +/-.00005°
    C axis repeatability +/-.00001°
  • Specifications

    Model B1250L
    Maximum bar capacity 3.74”
    Maximum machining diameter 17.8”
    Maximum machining length 46”
    Maximum swing over diameter (bench) 26.7”
    MAIN SPINDLE
    Spindle Bore 3.74”
    Spindle speed range 3,000 RPM
    Geared headstock 1:1 and 4:1
    Spindle motor 51 HP
    Motor type Wide range
    Spindle nose ASA A2-8
    TURRET
    Turret indexing time 1 station 0.3 sec/pos
    Turret indexing type Bi-directional
    Number of stations 16
    TAILSTOCK
    Positioning travel 51.2”
    Quill Stroke 6”
    Quill diameter 4.5”
    Cylinder area sq. in 17.23
    Max Thrust 2,645.5lbs
    Flange for live center MT5
    REVOLVING TOOL ATTACHMENT TURRET
    Number of positions 16
    Drive motor-max. rating (Fanuc) 23 HP
    Speed range 6,000 RPM
    Engagement time immediate
    C AXIS CONTROL WITH SPINDLE POSITIONING
    Spindles Main
    Spindle positioning Full “C”
    Minimum command increment 0.001 degree
    Positioning system Spindle motor
    Degree of movement Programmable
    Rapid speed rate 100 RPM
    GENERAL INFORMATION
    Voltage required 400 volt AC, 3-phase
    Air required 80 psi @ 4 CFM
    MACHINING DIMENSIONS
    Width 86.2”
    Height 87.5”
    Length with chip conveyor 218”
    Machine weight with chip conveyor 18,519 lbs.
    ACCURACY
    Z axis repeatability accuracy +/-.00004”
    X  axis positioning accuracy +/-.00006”
    C axis positioning accuracy +/-.00005°
    C axis repeatability +/-.00001°
  • Specifications

    Model B750LY
    Maximum bar capacity 3.75”
    Maximum machining diameter 18.4”
    Maximum machining length 29.5”
    Maximum swing over diameter (bench) 26.7”
    MAIN SPINDLE
    Spindle Bore 4.17”
    Spindle speed range 3,000 RPM
    Spindle motor 53 HP
    Motor type Wide range
    Spindle nose ASA A2-8
    Y-axis stroke 5.5”
    TURRET
    Turret indexing time 1 station 0.3 sec/pos. (1-station)
    Turret indexing type Bi-directional
    Number of stations 16
    REVOLVING TOOL ATTACHMENT TURRET
    Number of positions 16
    Drive motor – max. rating (Fanuc) 23 HP
    Speed range (infinitely variable) 6,000 RPM
    Engagement time immediate
    C-AXIS CONTROL W/ SPINDLE POSITIONING
    Spindles Main
    Spindle positioning Full “C”
    Minimum command increment 0.001 degree
    Positioning system Spindle motor
    Degree of movement Programmable
    Rapid speed rate 100 RPM
    GENERAL INFORMATION
    Voltage required 400 volt AC, 3-phase
    Air required 80 psi @ 4 CFM
    Amperage Draw 75 Amp.
    MACHINING DIMENSIONS
    Width 80”
    Height 87.5”
    Length with chip conveyor 157.5”
    Machine weight with chip conveyor 16,755 lbs.
    ACCURACY
    Z axis repeatability accuracy +/-.00004”
    X  axis positioning accuracy +/-.00006”
    C axis positioning accuracy +/-.00005°
    C axis repeatability +/-.00001°
