8 inch Live Tooling Turret

Live Tooling Turret

  • DESCRIPTION UNIT E160C
    Max Turning Dia in 11
    Max Turning Length in 11
    Chuck Size inch 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (Max/Cont.) hp 14.75/10
    Spindle Torque (Max/Cont.) ft.lb 47.5/93
    Travel(X/Z) in 6.5/13
    Rapid Travel(X/Z) in/min 1181/1181
    Slide Type LM
    No. of Tools EA 10
    Tool Size (ID/OD) in 1/1.25
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • DESCRIPTION UNIT E160LC
    Max Turning Dia in 11
    Max Turning Length in 20
    Chuck Size inch 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (Max/Cont.) hp 14.75/10
    Spindle Torque (Max/Cont.) ft.lb 47.5/93
    Travel(X/Z) in 6.5/20.8
    Rapid Travel(X/Z) in/min 1181/1181
    Slide Type LM
    No. of Tools EA 10
    Tool Size (ID/OD) in 1/1.25
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • DESCRIPTION UNIT E160LMC
    Max Turning Dia in 7.5
    Max Turning Length in 17.7
    Chuck Size inch 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (max/cont.) hp 20/14.75
    Spindle Torque (max/cont.) ft.lb 69.7/126.7
    Travel(X/Z) in 6.5/18
    Rapid Travel(X/Z) in/min 1181/1181
    Slide Type LM
    No. of Tools EA 12
    Tool Size (ID/OD) in 0.75/1.25
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

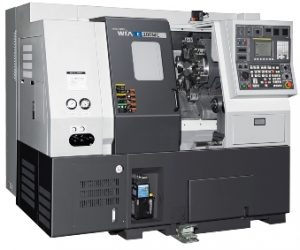

  • DESCRIPTION UNIT E200MC
    Max Turning Dia inch 11.4″
    Max Turning Length inch 10″
    Chuck Size inch 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output hp 14.75/20
    Spindle Torque ft.lb 67.85 / 123
    Travel(X/Z) inch 8.3′′/13′′
    Rapid Travel(X/Z) in/min 1,417/1,417
    Slide Type LM
    No. of Tools EA 12
    Tool Size (OD/ID) inch 0.75″ / 1.25″
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • hd2200
    DESCRIPTION UNIT HD2200M
    Max Turning Dia in 11.8
    Max Turning Length in 18.4
    Chuck Size in 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (max/cont.) hp 25/20
    Spindle Torque (max/cont.) ft.lb 152 / 92.4
    Travel(X/Z) in 8.5/19
    Rapid Travel(X/Z) in/min 945/1181
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (ID / OD) in 1″ / 1.5″

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • hd2200y Canada

    Specifications

    Description Unit HD2200Y
    Max Turning Dia in 11.8″
    Max Turning Length in 25.6″
    Chuck Size in 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (max/cont.) hp 25/20
    Spindle Torque (max/cont.) ft.lbs 152/123
    Travel(X/Y/Z) in 8.5/4.3/26.8
    Rapid Travel(X/Y/Z) in/min 945/394/1181
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (ID/OD) in 1″/1.5″
    Milling Tool Speed r/min 6,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Specifications

    DESCRIPTION UNIT L2000LY
    Max Turning Dia inch 16.5″
    Max Turning Length inch 30″
    Chuck Size inch 8″
    Driving Method Built in
    Spindle RPM r/min 5,000
    Spindle Output (max/ cont.) hp 30/25
    Spindle Torque (max/ cont.) ft.lb 158 /264
    Travel(X/Y/Z) inch 10.4″ /4.7″ / 32.6″
    Travel(X/Y/Z/ZB) inch
    Rapid Travel(X/Y/Z) in/min 1181/394/1181
    Rapid Travel(X/Y/Z/ZB) in/min
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (ID / OD) inch 1″ / 2″
    Milling Tool Speed r/min 5,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • DESCRIPTION UNIT L2000SY
    Max Turning Dia inch 16.5″
    Max Turning Length inch 20.5″
    Chuck Size inch Main 8″
    Sub 6″
    Driving Method Built in
    Spindle RPM r/min 5,000
    Spindle Output (max/ cont.) hp 30/25
    Spindle Torque (max/ cont.) ft.lb 158 /264
    Travel(X/Y/Z) inch
    Travel(X/Y/Z/ZB) inch 10.4″ / 4.7″ / 23.2″ / 23.2″
    Rapid Travel(X/Y/Z) in/min
    Rapid Travel(X/Y/Z/ZB) in/min 1181/394/1181/1181
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (ID / OD) inch 1″ / 2″
    Milling Tool Speed r/min 5,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • DESCRIPTION UNIT L2000Y
    Max Turning Dia inch 16.5″
    Max Turning Length inch 20.5″
    Chuck Size inch 8″
    Driving Method Built in
    Spindle RPM r/min 5,000
    Spindle Output (max/ cont.) hp 30/25
    Spindle Torque (max/ cont.) ft.lb 158 /264
    Travel(X/Y/Z) inch 10.4″ / 4.7″ / 23.2″
    Travel(X/Y/Z/ZB) inch
    Rapid Travel(X/Y/Z) in/min 1181/394/1181
    Rapid Travel(X/Y/Z/ZB) in/min
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (ID / OD) inch 1″ / 2″
    Milling Tool Speed r/min 5,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Specifications

    DESCRIPTION UNIT L230MA
    Max Turning Dia inch 12.2″
    Max Turning Length inch 14″
    Chuck Size inch 8″
    Driving Method Belt
    Spindle RPM r/min 4,000
    Spindle Output (Max/Cont.) hp 20 / 15
    Spindle Torque (Max/Cont.) ft.lb 211/155
    Travel(X/Z) inch 8.66″ / 17.3″
    Rapid Travel(X/Z) in/min 1417″ / 1417″
    Slide Type LM
    No. of Tools EA 12
    Tool Size (ID / OD) inch 1″ / 1.5″
    Milling Tool Speed r/min 5,000

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.
