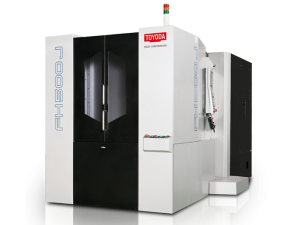

  • Toyoda FH500J

    FERROUS SPECS

    Pallet Size 19.68″ x 19.68″ (500 mm x 500 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 28.74” (730 mm)
    Y-Axis Travel 28.74” (730 mm)
    Z-Axis Travel 33.46” (850 mm)
    Max Workpiece Swing 31.50” (800 mm)
    Max Workpiece Height 39.37″ (1,000 mm)
    Maximum Work Load on the Pallet 1,540 lb (700 kg)
    Spindle Output Torque 295 ft-lb (400 Nm)
    Available Spindle CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
    Machine Height 113″ (2,870 mm)
    Standard Net Weight 29,700 lb (13,500 kg)

    NON-FERROUS SPECS

    Pallet Size 19.68″ x 19.68″ (500 mm x 500 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 28.74” (730 mm)
    Y-Axis Travel 28.74” (730 mm)
    Z-Axis Travel 33.46” (850 mm)
    Max Workpiece Swing 31.50” (800 mm)
    Max Workpiece Height 39.37″ (1,000 mm)
    Maximum Work Load on the Pallet 1,540 lb (700 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT#40 30HP 15,000 RPM (0-15,000 in 1.9 sec)
    Available Spindle CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
    Machine Height 113″ (2,870 mm)
    Standard Net Weight 29,700 lb (13,500 kg)

    HIGH TEMP ALLOY SPECS

    Pallet Size 19.68″ x 19.68″ (500 mm x 500 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 28.74” (730 mm)
    Y-Axis Travel 28.74” (730 mm)
    Z-Axis Travel 33.46” (850 mm)
    Max Workpiece Swing 31.50” (800 mm)
    Max Workpiece Height 39.37″ (1,000 mm)
    Maximum Work Load on the Pallet 1,540 lb (700 kg)
    Spindle Output Torque 295 ft-lb (400 Nm)
    Available Spindle CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
    Machine Height 113″ (2,870 mm)
    Standard Net Weight 29,700 lb (13,500 kg)

    ACCURACY

    Linear Position Accuracy ± .00012″ (.003 mm) full stroke
    Linear Repeatability ± .00008″ (.002 mm)
    Rotary Table Index Accuracy ± 7 arc seconds
    Rotary Table Index Repeatability ± 3.5 arc seconds

    REEQUIREMENTS

    Hydraulic Oil Mobil DTE Oil Light (4.75 gal)
    Slideway Lubrication Mobil Vactra #2 (1.1 gal)
    Spindle Bearing Lubrication Mobil Velocite #6 (1.1 gal)
    Spindle Cooling Mobil Velocite #3 (5.3 gal)
    Table Lubrication Mobil Gear 600 XP 150 (.79 gal)
    Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
    Power Capacity (Machine Wired: 208V – Transformer Not Included) 51 kVA
    Read more

    Toyoda FH500J

  • Toyoda FH450J

    Call For Specs

    Read more

    Toyoda FH450J

  • Toyoda FH450S

    FERROUS SPECS

    Pallet Size 17.7″ x 17.7″ (450 mm x 450 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 23.62” (600 mm)
    Z-Axis Travel 23.62” (600 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Available Spindle CAT#40 30 HP 20,000 RPM (0-20,000 in 2.4 sec)
    Rapid Feedrate (X axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Y axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Z axis) 1,968 ipm (50 m/min)
    Tool Storage Capacity 60 Standard (120 Optional)
    Standard Floor Space 100″ x 243″ (2,520 mm x 6,159 mm)
    Machine Height 125″ (3,160 mm)
    Standard Net Weight 25,300 lb (11,500 kg)

    NON-FERROUS SPECS

    Pallet Size 17.7″ x 17.7″ (450 mm x 450 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 23.62” (600 mm)
    Z-Axis Travel 23.62” (600 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Available Spindle CAT#40 30 HP 20,000 RPM (0-20,000 in 2.4 sec)
    Rapid Feedrate (X axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Y axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Z axis) 1,968 ipm (50 m/min)
    Tool Storage Capacity 60 Standard (120 Optional)
    Standard Floor Space 100″ x 243″ (2,520 mm x 6,159 mm)
    Machine Height 125″ (3,160 mm)
    Standard Net Weight 25,300 lb (11,500 kg)

    HIGH TEMP ALLOY SPECS

    Pallet Size 17.7″ x 17.7″ (450 mm x 450 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 23.62” (600 mm)
    Z-Axis Travel 23.62” (600 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Rapid Feedrate (X axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Y axis) 1,968 ipm (50 m/min)
    Rapid Feedrate (Z axis) 1,968 ipm (50 m/min)
    Tool Storage Capacity 60 Standard (120 Optional)
    Standard Floor Space 100″ x 243″ (2,520 mm x 6,159 mm)
    Machine Height 125″ (3,160 mm)
    Standard Net Weight 25,300 lb (11,500 kg)

    ACCURACY

    Linear Position Accuracy ±.00012″ (.003 mm) full stroke
    Linear Repeatability ± .00006″ (.0015 mm)
    Rotary Table Index Accuracy ± 7 arc seconds
    Rotary Table Index Repeatability ± 3.5 arc seconds

    REEQUIREMENTS

    Hydraulic Oil Mobil DTE Oil Light (14 gal)
    Slideway Lubrication Mobil Vactra #2 (.76 gal)
    Spindle Bearing Lubrication Mobil Velocite #6 (.76 gal)
    Spindle Cooling Mobil Velocite #3 (4.2 gal)
    Table Lubrication Mobil Gear 600 XP 150 (1.1 gal)
    Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
    Power Capacity (Machine Wired: 208V – Transformer Not Included) 52 kVA
    Read more

    Toyoda FH450S

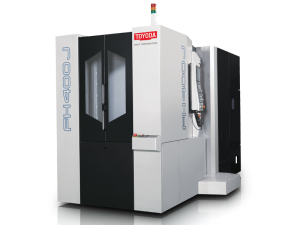

  • Toyoda FH400J

    FERROUS SPECS

    Pallet Size 15.75″ x 15.75″ (400 mm x 400 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 22.05” (560 mm)
    Z-Axis Travel 24.80” (630 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 83″ x 166″ (2,100 mm x 4,205 mm)
    Machine Height 108″ (27,735 mm)
    Standard Net Weight 24,200 lb (11,000 kg)

    NON-FERROUS SPECS

    Pallet Size 15.75″ x 15.75″ (400 mm x 400 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 22.05” (560 mm)
    Z-Axis Travel 24.80” (630 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 83″ x 166″ (2,100 mm x 4,205 mm)
    Machine Height 108″ (27,735 mm)

    HIGH TEMP ALLOY SPECS

    Pallet Size 15.75″ x 15.75″ (400 mm x 400 mm)
    Table Index Full NC table (360,000 positions)
    X-Axis Travel 23.62” (600 mm)
    Y-Axis Travel 22.05” (560 mm)
    Z-Axis Travel 24.80” (630 mm)
    Max Workpiece Swing 24.80” (630 mm)
    Max Workpiece Height 35.43″ (900 mm)
    Maximum Work Load on the Pallet 880 lb (400 kg)
    Spindle Output Torque 123 ft-lb (167 Nm)
    Available Spindle CAT #40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
    Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
    Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)
    Tool Storage Capacity 60 Standard (119 Optional)
    Standard Floor Space 83″ x 166″ (2,100 mm x 4,205 mm)
    Machine Height 108″ (27,735 mm)
    Standard Net Weight 24,200 lb (11,000 kg)

    ACCURACY

    Linear Position Accuracy ± .00012″ (.003 mm) full stroke
    Linear Repeatability ± .00006″ (.0015 mm)
    Rotary Table Index Accuracy ± 7 arc seconds
    Rotary Table Index Repeatability ± 3.5 arc seconds

    REEQUIREMENTS

    Hydraulic Oil Mobil DTE Oil Light (4.75 gal)
    Slideway Lubrication Mobil Vactra #2 (.76 gal)
    Spindle Bearing Lubrication Mobil Velocite #6 (.76 gal)
    Spindle Cooling Mobil Velocite #3 (4 gal)
    Table Lubrication Mobil Gear 600 XP 150 (.4 gal)
    Air Source 56 ~ 70 psi (4 ~ 5 kgf / cm²)
    Power Capacity (Machine Wired: 208V – Transformer Not Included) 52 kVA
    Read more

    Toyoda FH400J
