50 Taper

  • FERROUS SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
    Trunnion Table Index Increment (B-axis).0001 degree
    X-Axis Travel59.1″ (1,500 mm)
    Y-Axis Travel55.1″ (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing51.18” (1,300 mm)
    Max Workpiece Height32.48” (825 mm)
    Maximum Work Load on the Pallet4,400 lb (2,000 kg)
    Spindle Output Torque391 ft-lb (530 Nm)
    Available SpindleCAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
    Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
    Rapid Feedrate (X axis)590 ipm (15 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (190, 240, 384 Optional)
    Standard Floor Space276″ x 331″ (7,000 mm x 8,400 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight112,436 lbs (51,000 kg)

    NON-FERROUS SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
    Trunnion Table Index Increment (B-axis).0001 degree
    X-Axis Travel59.1″ (1,500 mm)
    Y-Axis Travel55.1” (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing51.18” (1,300 mm)
    Max Workpiece Height32.48” (825 mm)
    Maximum Work Load on the Pallet4,400 lb (2,000 kg)
    Spindle Output Torque123 ft-lb (167 Nm)
    Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
    Rapid Feedrate (X axis)590 ipm (15 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (190, 240, 384 Optional)
    Standard Floor Space276″ x 331″ (7,000 mm x 8,400 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight112,436 lbs (51,000 kg)

    HIGH TEMP ALLOY SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
    Trunnion Table Index Increment (B-axis).0001 degree
    X-Axis Travel59.1″ (1,500 mm)
    Y-Axis Travel55.1” (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing51.18” (1,300 mm)
    Max Workpiece Height32.48” (825 mm)
    Maximum Work Load on the Pallet4,400 lb (2,000 kg)
    Spindle Output Torque744 ft-lb (1,009 Nm)
    Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
    Rapid Feedrate (X axis)590 ipm (15 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (190, 240, 384 Optional)
    Standard Floor Space276″ x 331″ (7,000 mm x 8,400 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight112,436 lbs (51,000 kg)

    ACCURACY

    Linear Position Accuracy± .000078″ (±0.002 mm) full stroke
    Linear Repeatability± 0.000039″ (± 0.001 mm)
    Rotary Positioning Accuracy (A and B axes)± 5 arc seconds
    Rotary Positioning Repeatability (A and B axes)± 3 arc seconds

    REEQUIREMENTS

    Hydraulic OilMobil DTE Oil Light (16.6 gal) (63 liter)
    Slideway LubricationDaphine Multiway 32C 1.5 gal (5.5 liter)
    Spindle Bearing LubricationMobil Velocite #3 (9.2 gal) (35 liter)
    A, B Axis LubricationMobil Gear 600 XP 68 A axis (10.6 gal/40 liter) B axis (5.3 gal/20 liter)
    Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
    Power Capacity (Machine Wired: 208V – Transformer Not Included)71 kVA
  • FERROUS SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Table IndexRotary table (1 degree)
    X-Axis Travel63” (1,600 mm)
    Y-Axis Travel55.1” (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing72.83” (1,850 mm)
    Max Workpiece Height61.02” (1,550 mm)
    Maximum Work Load on the Pallet6,600 lb (3,000 kg)
    Spindle Output Torque391 ft-lb (530 Nm)
    Available SpindleCAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
    Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
    Rapid Feedrate (X axis)944 ipm (24 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (120, 190, 240 Optional)
    Standard Floor Space215″ x 320″ (5,460 mm x 8,140 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight66,139 lb (30,000 kg)

    NON-FERROUS SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Table IndexRotary table (1 degree)
    X-Axis Travel63” (1,600 mm)
    Y-Axis Travel55.1” (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing72.83” (1,850 mm)
    Max Workpiece Height61.02” (1,550 mm)
    Maximum Work Load on the Pallet6,600 lb (3,000 kg)
    Spindle Output Torque123 ft-lb (167 Nm)
    Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
    Rapid Feedrate (X axis)944 ipm (24 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (120, 190, 240 Optional)
    Standard Floor Space215″ x 320″ (5,460 mm x 8,140 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight66,139 lb (30,000 kg)

    HIGH TEMP ALLOY SPECS

    Pallet Size41.3″ x 41.3″ (1,050 mm x 1,050 mm)
    Table IndexRotary table (1 degree)
    X-Axis Travel63” (1,600 mm)
    Y-Axis Travel55.1” (1,400 mm)
    Z-Axis Travel45.2” (1,150 mm)
    Max Workpiece Swing72.83” (1,850 mm)
    Max Workpiece Height61.02” (1,550 mm)
    Maximum Work Load on the Pallet6,600 lb (3,000 kg)
    Spindle Output Torque744 ft-lb (1,009 Nm)
    Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
    Rapid Feedrate (X axis)944 ipm (24 m/min)
    Rapid Feedrate (Y axis)944 ipm (24 m/min)
    Rapid Feedrate (Z axis)944 ipm (24 m/min)
    Tool Storage Capacity60 Standard (120, 190, 240 Optional)
    Standard Floor Space215″ x 320″ (5,460 mm x 8,140 mm)
    Machine Height161″ (4,100 mm)
    Standard Net Weight66,139 lb (30,000 kg)

    ACCURACY

    Linear Position Accuracy± .00012″ (±0.003 mm) full stroke
    Linear Repeatability± 0.00008″ (± 0.002 mm)
    Rotary Table Index Accuracy± 3 arc seconds

    REEQUIREMENTS

    Hydraulic OilMobil DTE Oil Light (16.6 gal)
    Slideway LubricationMobil Vactra #2 (1.5 gal)
    Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
    Spindle CoolingMobil Velocite #3 (9.2 gal)
    Table LubricationMobil Gear 600 XP 150 (1.1 gal)
    Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
    Power Capacity (Machine Wired: 208V – Transformer Not Included)54 kVA

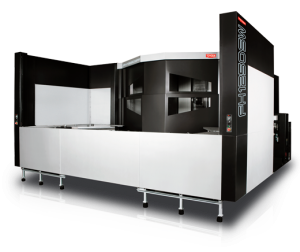

    • FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel59” (1,500 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      W-Axis Travel21.6″ (550 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque968 ft-lb (1,313 Nm)
      Available SpindleCAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space293″ x 390″ (7,450 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,129 lb (49,500 kg)

      NON-FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel59” (1,500 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      W-Axis Travel21.6″ (550 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque968 ft-lb (1,313 Nm)
      Available SpindleCAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space293″ x 390″ (7,450 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,129 lb (49,500 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel59” (1,500 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      W-Axis Travel21.6″ (550 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque968 ft-lb (1,313 Nm)
      Available SpindleCAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space293″ x 390″ (7,450 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,129 lb (49,500 kg)

      ACCURACY

      Linear Position Accuracy (X, Y, and Z axes)± .00012″ (±0.003 mm) full stroke
      Linear Repeatability (X, Y, and Z axes)± 0.00008″ (± 0.002 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds
      W-axis Accuracy± 5 µ
      W-axis Repeatability± 3 µ

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (16.6 gal)
      Slideway LubricationMobil Vactra #2 (1.5 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (18.5 gal)
      Table LubricationMobil Gear 600 XP 150 (1.14 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)69 kVA

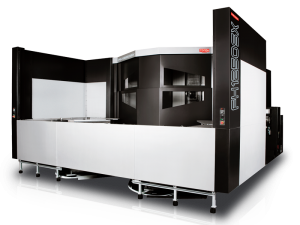

    • FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque391 ft-lb (530 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
      Available SpindleCAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
      Rapid Feedrate (X axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Y axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space244″ x 389″ (6,200 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight105,821 lb (48,000 kg)

      NON-FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque123 ft-lb (167 Nm)
      Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
      Rapid Feedrate (X axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Y axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space244″ x 389″ (6,200 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight105,821 lb (48,000 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque744 ft-lb (1,009 Nm)
      Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
      Rapid Feedrate (X axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Y axis)1,654 ipm (42 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space244″ x 389″ (6,200 mm x 9,900 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight105,821 lb (48,000 kg)

      ACCURACY

      Linear Position Accuracy± .00012″ (±0.003 mm) full stroke
      Linear Repeatability± 0.00008″ (± 0.002 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (16.6 gal)
      Slideway LubricationMobil Vactra #2 (1.5 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (5.3 gal)
      Table LubricationMobil Gear 600 XP 150 (1.1 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)59 kVA

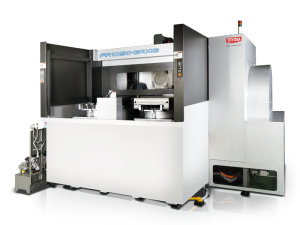

    • FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Tilt Spindle (A-axis)-100° ~ +45°
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque295 ft-lb (400 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (High Torque 400 Nm)
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,100 lb (49,500 kg)

      NON-FERROUS SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Tilt Spindle (A-axis)-100° ~ +45°
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque295 ft-lb (400 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (High Torque 400 Nm)
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,100 lb (49,500 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size49.2″ x 49.2″ (1,250 mm x 1,250 mm)
      Tilt Spindle (A-axis)-100° ~ +45°
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel86.6″ (2,200 mm)
      Y-Axis Travel63” (1,600 mm)
      Z-Axis Travel72.8″ (1,850 mm)
      Max Workpiece Swing84.49” (2,400 mm)
      Max Workpiece Height70.87” (1,800 mm)
      Maximum Work Load on the Pallet11,000 lb (5,000 kg)
      Spindle Output Torque295 ft-lb (400 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (High Torque 400 Nm)
      Rapid Feedrate (X axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Y axis)1,260 ipm (32 m/min)
      Rapid Feedrate (Z axis)1,654 ipm (42 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight109,100 lb (49,500 kg)

      ACCURACY

      Linear Position Accuracy (X, Y, and Z axes)± .00012″ (±0.003 mm) full stroke
      Linear Repeatability (X, Y, and Z axes)± 0.00008″ (± 0.002 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds
      A-axis Accuracy± 5 arc seconds
      A-axis Repeatability± 3 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (16.6 gal)
      Slideway LubricationMobil Vactra #2 (1.5 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (5.3 gal)
      Table LubricationMobil Gear 600 XP 150 (1.1 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)59 kVA

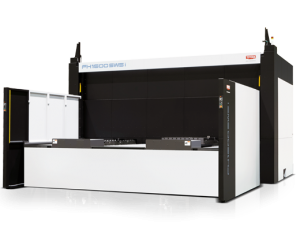

    • FERROUS SPECS

      Pallet Size63″ x 49.2″ (1,600 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel118.1″ (3,000 mm)
      Y-Axis Travel74.8″ (1,900 mm)
      Z-Axis Travel82.6″ (2,100 mm)
      W-Axis Travel29.5 (750 mm)
      Max Workpiece Swing126” (3,200 mm)
      Max Workpiece Height82.6” (2,100 mm)
      Maximum Work Load on the Pallet17,600 lbs (8,000 kg)
      Spindle Output Torque1,560 ft-lb (2,115 Nm)
      Available SpindleCAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
      Rapid Feedrate (X axis)1,378 ipm (35 m/min)
      Rapid Feedrate (Y axis)1,575 ipm (40 m/min)
      Rapid Feedrate (Z axis)1,575 ipm (40 m/min)
      Rapid Feedrate (W-axis)787 ipm (20 m/min)
      Tool Storage CapacityOne Hundred Twenty (120)
      Standard Floor Space398″ x 575″ (10,100 mm x 14,600 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight165,350 lb (75,000 kg)

      NON-FERROUS SPECS

      Pallet Size63″ x 49.2″ (1,600 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel118.1″ (3,000 mm)
      Y-Axis Travel74.8″ (1,900 mm)
      Z-Axis Travel82.6″ (2,100 mm)
      W-Axis Travel29.5 (750 mm)
      Max Workpiece Swing126” (3,200 mm)
      Max Workpiece Height82.6” (2,100 mm)mm)
      Maximum Work Load on the Pallet17,600 lbs (8,000 kg)
      Spindle Output Torque1,560 ft-lb (2,115 Nm)
      Available SpindleCAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
      Rapid Feedrate (X axis)1,378 ipm (35 m/min)
      Rapid Feedrate (Y axis)1,575 ipm (40 m/min)
      Rapid Feedrate (Z axis)1,575 ipm (40 m/min)
      Rapid Feedrate (W-axis)787 ipm (20 m/min)
      Tool Storage CapacityOne Hundred Twenty (120)
      Standard Floor Space398″ x 575″ (10,100 mm x 14,600 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight165,350 lb (75,000 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size63″ x 49.2″ (1,600 mm x 1,250 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel118.1″ (3,000 mm)
      Y-Axis Travel74.8″ (1,900 mm)
      Z-Axis Travel82.6″ (2,100 mm)
      W-Axis Travel29.5 (750 mm)
      Max Workpiece Swing126” (3,200 mm)
      Max Workpiece Height82.6” (2,100 mm)
      Maximum Work Load on the Pallet17,600 lbs (8,000 kg)
      Spindle Output Torque1,560 ft-lb (2,115 Nm)
      Available SpindleCAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
      Rapid Feedrate (X axis)1,378 ipm (35 m/min)
      Rapid Feedrate (Y axis)1,575 ipm (40 m/min)
      Rapid Feedrate (Z axis)1,575 ipm (40 m/min)
      Rapid Feedrate (W-axis)787 ipm (20 m/min)
      Tool Storage CapacityOne Hundred Twenty (120)
      Standard Floor Space398″ x 575″ (10,100 mm x 14,600 mm)
      Machine Height178″ (4,520 mm)
      Standard Net Weight165,350 lb (75,000 kg)

      ACCURACY

      Linear Position Accuracy (X, Y, and Z axes)± .00012″ (±0.003 mm) full stroke
      Linear Repeatability (X, Y, and Z axes)± 0.00007″ (± 0.0015 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (16.6 gal / 63 liter)
      Slideway LubricationMobil Vactra #2 (1.5 gal / 5.5 liter)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal /2.9 liter)
      Spindle CoolingMobil Velocite #3 (5.3 gal / 20 liter)
      terTable LubricationMobil Gear 600 XP 150 (1.1 gal / 4 liter)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)79 kVA

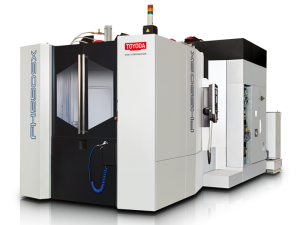

    • FERROUS SPECS

      Pallet Size21.65″ x 21.65″ (550 mm x 550 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel29.52” (750 mm)
      Y-Axis Travel31.50” (800 mm)
      Z-Axis Travel33.46” (850 mm)
      Max Workpiece Swing33.46” (850 mm)
      Max Workpiece Height39.37″ (1,000 mm)
      Maximum Work Load on the Pallet1,760 lb (800 kg)
      Spindle Output Torque391 ft-lb (530 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space130″ x 224″ (3,312 mm x 5,695 mm)
      Machine Height126″ (3,200 mm)
      Standard Net Weight35,494 lb (16,100 kg)

      NON-FERROUS SPECS

      Pallet Size21.65″ x 21.65″ (550 mm x 550 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel29.52” (750 mm)
      Y-Axis Travel31.50” (800 mm)
      Z-Axis Travel33.46” (850 mm)
      Max Workpiece Swing33.46” (850 mm)
      Max Workpiece Height39.37″ (1,000 mm)
      Maximum Work Load on the Pallet1,760 lb (800 kg)
      Spindle Output Torque123 ft-lb (167 Nm)
      Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space130″ x 224″ (3,312 mm x 5,695 mm)
      Machine Height126″ (3,200 mm)
      Standard Net Weight35,494 lb (16,100 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size21.65″ x 21.65″ (550 mm x 550 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel29.52” (750 mm)
      Y-Axis Travel31.50” (800 mm)
      Z-Axis Travel33.46” (850 mm)
      Max Workpiece Swing33.46” (850 mm)
      Max Workpiece Height39.37″ (1,000 mm)
      Maximum Work Load on the Pallet1,760 lb (800 kg)
      Spindle Output Torque744 ft-lb (1,009 Nm)
      Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1009 Nm)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space130″ x 224″ (3,312 mm x 5,695 mm)
      Machine Height126″ (3,200 mm)
      Standard Net Weight35,494 lb (16,100 kg)

      ACCURACY

      Linear Position Accuracy± .00012″ (.003 mm) full stroke
      Linear Repeatability± .00008″ (.002 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (14 gal)
      Slideway LubricationMobil Vactra #2 (.76 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (9.3 gal)
      Table LubricationMobil Gear 600 XP 150 (.79 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)54 kVA

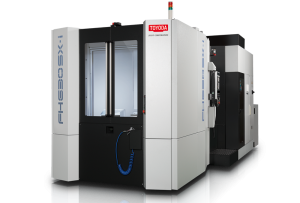

    • FERROUS SPECS

      Pallet Size24.8″ x 24.8″ (630 mm x 630 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel41.34” (1,050 mm)
      Y-Axis Travel35.43” (900 mm)
      Z-Axis Travel41.34” (1,050 mm)
      Max Workpiece Swing46.06” (1,170 mm)
      Max Workpiece Height49.21″ (1,250 mm)
      Maximum Work Load on the Pallet3,306 lb (1,500 kg)
      Spindle Output Torque391 ft-lb (530 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space141.7″ x 271.6″ (3,600 mm x 6,900 mm)
      Machine Height126.1″ (3,203 mm)
      Standard Net Weight43,210 lb (19,600 kg)

      NON-FERROUS SPECS

      Pallet Size24.8″ x 24.8″ (630 mm x 630 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel41.34” (1,050 mm)
      Y-Axis Travel35.43” (900 mm)
      Z-Axis Travel41.34” (1,050 mm)
      Max Workpiece Swing46.06” (1,170 mm)
      Max Workpiece Height49.21″ (1,250 mm)
      Maximum Work Load on the Pallet3,306 lb (1,500 kg)
      Spindle Output Torque123 ft-lb (167 Nm)
      Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space141.7″ x 271.6″ (3,600 mm x 6,900 mm)
      Machine Height126.1″ (3,203 mm)
      Standard Net Weight43,210 lb (19,600 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size24.8″ x 24.8″ (630 mm x 630 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel41.34” (1,050 mm)
      Y-Axis Travel35.43” (900 mm)
      Z-Axis Travel41.34” (1,050 mm)
      Max Workpiece Swing46.06” (1,170 mm)
      Max Workpiece Height49.21″ (1,250 mm)
      Maximum Work Load on the Pallet3,306 lb (1,500 kg)
      Spindle Output Torque744 ft-lb (1,009 Nm)
      Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
      Rapid Feedrate (X axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Y axis)2,362 ipm (60 m/min)
      Rapid Feedrate (Z axis)2,362 ipm (60 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space141.7″ x 271.6″ (3,600 mm x 6,900 mm)
      Machine Height126.1″ (3,203 mm)
      Standard Net Weight43,210 lb (19,600 kg)

      ACCURACY

      Linear Position Accuracy± .00012″ (.003 mm) full stroke
      Linear Repeatability± .00008″ (.002 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (4.75 gal)
      Slideway LubricationMobil Vactra #2 (.76 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (9.2 gal)
      Table LubricationMobil Gear 600 XP 150 (.8 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)43 kVA

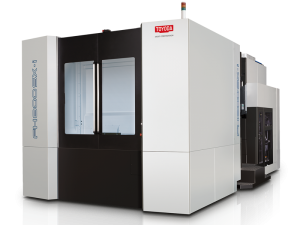

    • FERROUS SPECS

      Pallet Size31.5” x 31.5” (800 mm x 800 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel57.1” (1,450 mm)
      Y-Axis Travel49.2” (1,250 mm)
      Z-Axis Travel61” (1,550 mm)
      Max Workpiece Swing59.06” (1,500 mm)
      Max Workpiece Height59.06” (1,500 mm)
      Maximum Work Load on the Pallet5,500 lb (2,500 kg)
      Spindle Output Torque391 ft-lb (530 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
      Rapid Feedrate (X axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Y axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Z axis)2,127 ipm (54 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space185” x 304″ (4,680 mm x 7,710 mm)
      Machine Height145″ (3,680 mm)
      Standard Net Weight61,600 lb (28,000 kg)

      NON-FERROUS SPECS

      Pallet Size31.5” x 31.5” (800 mm x 800 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel57.1” (1,450 mm)
      Y-Axis Travel49.2” (1,250 mm)
      Z-Axis Travel61” (1,550 mm)
      Max Workpiece Swing59.06” (1,500 mm)
      Max Workpiece Height59.06” (1,500 mm)
      Maximum Work Load on the Pallet5,500 lb (2,500 kg)
      Spindle Output Torque123 ft-lb (167 Nm)
      Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
      Rapid Feedrate (X axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Y axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Z axis)2,127 ipm (54 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space185” x 304″ (4,680 mm x 7,710 mm)
      Machine Height145″ (3,680 mm)
      Standard Net Weight61,600 lb (28,000 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size31.5” x 31.5” (800 mm x 800 mm)
      Table IndexFull NC table (360,000 positions)
      X-Axis Travel57.1” (1,450 mm)
      Y-Axis Travel49.2” (1,250 mm)
      Z-Axis Travel61” (1,550 mm)
      Max Workpiece Swing59.06” (1,500 mm)
      Max Workpiece Height59.06” (1,500 mm)
      Maximum Work Load on the Pallet5,500 lb (2,500 kg)
      Spindle Output Torque744 ft-lb (1,009 Nm)
      Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
      Rapid Feedrate (X axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Y axis)2,127 ipm (54 m/min)
      Rapid Feedrate (Z axis)2,127 ipm (54 m/min)
      Tool Storage Capacity60 Standard (121 Optional)
      Standard Floor Space185” x 304″ (4,680 mm x 7,710 mm)
      Machine Height145″ (3,680 mm)
      Standard Net Weight61,600 lb (28,000 kg)

      ACCURACY

      Linear Position Accuracy± .00012” (.003 mm) full stroke
      Linear Repeatability± .00006” (.0015 mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (4.75 gal)
      Slideway LubricationMobil Vactra #2 (.76 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (5.28 gal)
      Table LubricationMobil Gear 600 XP 150 (1 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm²)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)59 kVA

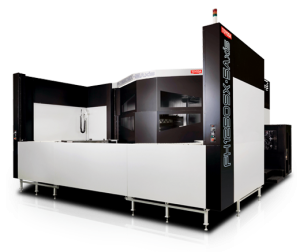

    • FERROUS SPECS

      Pallet Size31.5″ x 31.5″ (800 mm x 800 mm)
      Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
      Trunnion Table Index Increment (B-axis).0001 degree
      X-Axis Travel43.3” (1,100 mm)
      Y-Axis Travel45.2” (1,150 mm)
      Z-Axis Travel45.2” (1,150 mm)
      Max Workpiece Swing62.99” (1,600 mm)
      Max Workpiece Height51.18” (1,300 mm)
      Maximum Work Load on the Pallet2,204 lb (1,000 kg)
      Spindle Output Torque391 ft-lb (530 Nm)
      Available SpindleCAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
      Available SpindleCAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
      Rapid Feedrate (X axis)590 ipm (15 m/min)
      Rapid Feedrate (Y axis)944 ipm (24 m/min)
      Rapid Feedrate (Z axis)944 ipm (24 m/min)
      Tool Storage Capacity60 Standard (120, 190, 240 Optional)
      Standard Floor Space208” x 268” (5,290 mm x 6,800 mm)
      Machine Height152″ (3,865 mm)
      Standard Net Weight77,162 lb (35,000 kg)

      NON-FERROUS SPECS

      Pallet Size31.5″ x 31.5″ (800 mm x 800 mm)
      Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
      Trunnion Table Index Increment (B-axis).0001 degree
      X-Axis Travel43.3” (1,100 mm)
      Y-Axis Travel45.2” (1,150 mm)
      Z-Axis Travel45.2” (1,150 mm)
      Max Workpiece Swing62.99” (1,600 mm)
      Max Workpiece Height51.18” (1,300 mm)
      Maximum Work Load on the Pallet2,204 lb (1,000 kg)
      Spindle Output Torque123 ft-lb (167 Nm)
      Available SpindleCAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
      Rapid Feedrate (X axis)590 ipm (15 m/min)
      Rapid Feedrate (Y axis)944 ipm (24 m/min)
      Rapid Feedrate (Z axis)944 ipm (24 m/min)
      Tool Storage Capacity60 Standard (120, 190, 240 Optional)
      Standard Floor Space208” x 268” (5,290 mm x 6,800 mm)
      Machine Height152″ (3,865 mm)
      Standard Net Weight77,162 lb (35,000 kg)

      HIGH TEMP ALLOY SPECS

      Pallet Size31.5″ x 31.5″ (800 mm x 800 mm)
      Trunnion Table Index Increment (A-axis).0001 degree (-100° ~ +15°)
      Trunnion Table Index Increment (B-axis).0001 degree
      X-Axis Travel43.3” (1,100 mm)
      Y-Axis Travel45.2” (1,150 mm)
      Z-Axis Travel45.2” (1,150 mm)
      Max Workpiece Swing62.99” (1,600 mm)
      Max Workpiece Height51.18” (1,300 mm)
      Maximum Work Load on the Pallet2,204 lb (1,000 kg)
      Spindle Output Torque744 ft-lb (1,009 Nm)
      Available SpindleCAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
      Rapid Feedrate (X axis)590 ipm (15 m/min)
      Rapid Feedrate (Y axis)944 ipm (24 m/min)
      Rapid Feedrate (Z axis)944 ipm (24 m/min)
      Tool Storage Capacity60 Standard (120, 190, 240 Optional)
      Standard Floor Space208” x 268” (5,290 mm x 6,800 mm)
      Machine Height152″ (3,865 mm)
      Standard Net Weight77,162 lb (35,000 kg)

      ACCURACY

      Linear Position Accuracy± .00012″ (± 0.003 mm) full stroke
      Linear Repeatability± .00006″ (± 0.0015″ mm)
      Rotary Table Index Accuracy± 7 arc seconds
      Rotary Table Index Repeatability± 3.5 arc seconds

      REEQUIREMENTS

      Hydraulic OilMobil DTE Oil Light (16.6 gal)
      Slideway LubricationMobil Vactra #2 (1.5 gal)
      Spindle Bearing LubricationMobil Velocite #6 (.76 gal)
      Spindle CoolingMobil Velocite #3 (9.3 gal)
      Table LubricationMobil Vacuoline 1405 (1.1 gal)
      Air Source56 ~ 70 psi (4 ~ 5 kgf / cm2)
      Power Capacity (Machine Wired: 208V – Transformer Not Included)61 kVA

    View All Machine Types

    FREE Appraisal


    YesNo

    Contact Us

    Use this contact form to schedule an appointment, inquire products and services, and for all other inquiries
