Live Tooling Turret

Live Tooling Turret

  • Yama Seiki GA-3000M(L)

    Specifications

    Description Unit GA-3000ML
    CAPACITY Max. / Swing over saddle mm(in) 599 mm (23.6″)
    Max. Turning Diameter mm(in) 500 mm (19.7″)
    Max. Turning Length mm(in) 630 mm (24.8″)
    Bar Capacity mm(in) 76 mm (3’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,000 rpm
    Motor output ( cont. / 30 min.) Hp / kW 18.5  / 22 kW ( 25 / 30 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 260 mm(10.23”) / 630mm (24.80”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 4 HP(2.7 kW)
    Z-axis servo motor HP (KW) 6 HP (4.5 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 38 gal. (145L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 38 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 2,845 x 1,965 x 1,910 ( 112.0″ x 77.4″ x 75.1″)
    Weight kg(lb) 5,800 kg ( 12,760 lb )
    NC Controller FANUC Oi-TD
    Read more

    Yama Seiki GA-3000M(L)

  • Yama Seiki GA-2800CM

    Specifications

    Description Unit GA-2800CM
    CAPACITY Max. / Swing over saddle mm(in) 579 mm (22.8″)
    Max. Turning Diameter mm(in) 351 mm (13.8″)
    Max. Turning Length mm(in) 259 mm (10.2″)
    Bar Capacity mm(in) 76 mm (3’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,500 rpm
    Motor output ( cont. / 30 min.) Hp / kW 11 / 15 kW ( 15 / 20 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 165mm(6.50”) / 330mm (12.99”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.1 HP(1.6 kW)
    Z-axis servo motor HP (KW) 4 HP (3.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 55 gal. (200L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 26 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 78″ x 92″ x 68″ ( 1,975 x 2,235 x 1,725 mm )
    Weight kg(lb) 7,700 lbs. ( 3,500 Kg )
    NC Controller FANUC Oi-TC
    Read more

    Yama Seiki GA-2800CM

  • Yama Seiki GA-2600M(L)

    Specifications

    Description Unit GA-2600ML
    CAPACITY Max. / Swing over saddle mm(in) 579 mm (22.8″)
    Max. Turning Diameter mm(in) 351 mm (13.8″)
    Max. Turning Length mm(in) 584 mm (23″)
    Bar Capacity mm(in) 64 mm (2.5’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 76mm (2.99”)
    Spindle Speed (rpm) rpm 4,000 rpm
    Motor output ( cont. / 30 min.) Hp / kW 11 / 15 kW ( 15 / 20 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 165mm(6.50”) / 330mm (12.99”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.1 HP(1.6 kW)
    Z-axis servo motor HP (KW) 4 HP (3.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 55 gal. (200L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 26 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 163″ x 65″ x 73″ ( 4,132 x 1,630 x 1,875 mm )
    Weight kg(lb) 10,120lbs. ( 4,600 Kg )
    NC Controller FANUC Oi-TC
    Read more

    Yama Seiki GA-2600M(L)

  • Yama Seiki GA-2600CM

    Specifications

    Description Unit GA-2600CM
    CAPACITY Max. / Swing over saddle mm(in) 579 mm (22.8″)
    Max. Turning Diameter mm(in) 351 mm (13.8″)
    Max. Turning Length mm(in) 292 mm (11.5″)
    Bar Capacity mm(in) 64 mm (2.5’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 76mm (2.99”)
    Spindle Speed (rpm) rpm 4,000 rpm
    Motor output ( cont. / 30 min.) Hp / kW 11 / 15 kW ( 15 / 20 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 165mm(6.50”) / 330mm (12.99”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.1 HP(1.6 kW)
    Z-axis servo motor HP (KW) 4 HP (3.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 55 gal. (200L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 26 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in)  78″ x 92″ x 68″ ( 1,975 x 2,235 x 1,725 mm )
    Weight kg(lb) 7,700 lbs. ( 3,500 Kg )
    NC Controller FANUC Oi-TC
    Read more

    Yama Seiki GA-2600CM

  • Yama Seiki GS-2800M

    Specifications

    Description Unit GS-2800M
    CAPACITY Max. / Swing over saddle mm(in) 630 mm (24.8″)
    Max. Turning Diameter mm(in) 399 mm (15.7″)
    Max. Turning Length mm(in) 594 mm (23.4″)
    Bar Capacity mm(in) 76 mm (2.95’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,500 rpm
    Motor output ( cont. / 30 min.) Hp / kW 15 / 18.5 kW ( 20 / 25 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Belt-Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 30mm(1.81”) / 570mm (22.44”)
    Rapid Travel (X/Z) m/min 30m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.7 HP(3.6 kW)
    Z-axis servo motor HP (KW) 4.5 HP (6.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 95 gal. (360L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in)  4,520 × 2,200 × 1,870 mm  (177.95″ x 86.61″ x 73.62”)
    Weight kg(lb) 8,500 Kg (18,735 lb. )
    NC Controller FANUC Oi-TD
    Read more

    Yama Seiki GS-2800M

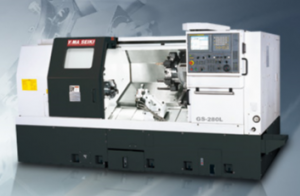

  • Yama Seiki GS-280M(L)

    Specifications

    Description Unit GS-280ML
    CAPACITY Max. / Swing over saddle mm(in) 671 mm (26.4″)
    Max. Turning Diameter mm(in) 419 mm (16.5″)
    Max. Turning Length mm(in) 599 mm (23.6″)
    Bar Capacity mm(in) 76 mm (3’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,500 rpm
    Motor output ( cont. / 30 min.) Hp / kW 11 / 18.5 kW ( 15 / 25 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 30mm(1.81”) / 570mm (22.44”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.2 HP(1.6 kW)
    Z-axis servo motor HP (KW) 4.1 HP (3.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 52.5 gal. (200L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 26 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in)  2,670 / 3,500 x 1,955 x 1,890 mm ( 106″ / 138″ x 77″ x 75″ )
    Weight kg(lb)  5,600 Kg (12,320 lb. )
    NC Controller FANUC Oi-TC
    Read more

    Yama Seiki GS-280M(L)

  • Yama Seiki GS-2800Y(L)

    Specifications

    Description Unit GS-2800YL
    CAPACITY Max. / Swing over saddle mm(in) 671 mm (26.4″)
    Max. Turning Diameter mm(in) 419 mm (16.5″)
    Max. Turning Length mm(in) 599 mm (23.6″)
    Bar Capacity mm(in) 76 mm (3’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,500 rpm
    Motor output ( cont. / 30 min.) Hp / kW 15 / 18.5 kW ( 20 / 25 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Belt-drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 300mm(11.81”) / 780mm (30.69”)
    Rapid Travel (X/Z) m/min 30m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 3.6 HP(2.7 kW)
    Z-axis servo motor HP (KW) 6 HP (4.5 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 95 gal. (360L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 4,520 × 2,200 × 2,260 mm  (177.95″ x 86.61″ x 88.97″ )
    Weight kg(lb) 8,500 kg (18,735lb)
    NC Controller FANUC Oi-TD
    Read more

    Yama Seiki GS-2800Y(L)

  • Yama Seiki GS-2600Y(L)

    Specifications

    Description Unit GS-2600YL
    CAPACITY Max. / Swing over saddle mm(in) 671 mm (26.4″)
    Max. Turning Diameter mm(in) 419 mm (16.5″)
    Max. Turning Length mm(in) 599 mm (23.6″)
    Bar Capacity mm(in) 64 mm (2.5’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 76mm (2.99”)
    Spindle Speed (rpm) rpm 4,000 rpm
    Motor output ( cont. / 30 min.) Hp / kW 15 / 18.5 kW ( 20 / 25 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Belt-drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 300mm(11.81”) / 780mm (30.69”)
    Rapid Travel (X/Z) m/min 30m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 3.6 HP(2.7 kW)
    Z-axis servo motor HP (KW) 6 HP (4.5 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 80 gal. (300L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 3,550 × 2,120 × 2,260 ( 139.76″ x 83.46″ x 70.86″)
    Weight kg(lb) 6,500 kg (14,330 lb)
    NC Controller FANUC Oi-TD
    Read more

    Yama Seiki GS-2600Y(L)

  • Yama Seiki GA-2800M(L)

    .

    Specifications

    Description Unit GA-2800ML
    CAPACITY Max. / Swing over saddle mm(in) 579 mm (22.8″)
    Max. Turning Diameter mm(in) 351 mm (13.8″)
    Max. Turning Length mm(in) 574 mm (22.6″)
    Bar Capacity mm(in) 76 mm (3’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 90mm (3.54”)
    Spindle Speed (rpm) rpm 3,500 rpm
    Motor output ( cont. / 30 min.) Hp / kW 11 / 15 kW ( 15 / 20 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Direct Belt Drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 165mm(6.50”) / 330mm (12.99”)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 2.1 HP(1.6 kW)
    Z-axis servo motor HP (KW) 4 HP (3.0 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 55 gal. (200L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 26 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 163″ x 65″ x 73″ ( 4,132 x 1,630 x 1,875 mm )
    Weight kg(lb) 10,120lbs. ( 4,600 Kg )
    NC Controller FANUC Oi-TC
    Read more

    Yama Seiki GA-2800M(L)

    .

  • Yama Seiki GS-2600M(L)


    Specifications

    Description Unit GS-2600ML
    CAPACITY Max. / Swing over saddle mm(in) 671 mm (26.4″)
    Max. Turning Diameter mm(in) 419 mm (16.5″)
    Max. Turning Length mm(in) 599 mm (23.6″)
    Bar Capacity mm(in) 64 mm (2.5’)
    SPINDLE Chuck Size (in) (10″)
    Hole through spindle mm(in) 76mm (2.99”)
    Spindle Speed (rpm) rpm 4,000 rpm
    Motor output ( cont. / 30 min.) Hp / kW 15 / 18.5 kW ( 20 / 25 HP )
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type – Belt-drive
    Spindle Nose – A2-8
    FEED Travel (X/Z) mm(in) 300mm(11.81”) / 780mm (30.69”)
    Rapid Travel (X/Z) m/min 30m/min
    Slide Type – Hardened & Ground Box Ways
    X-axis servo motor HP (KW) 3.6 HP(2.7 kW)
    Z-axis servo motor HP (KW) 6 HP (4.5 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm(1”)
    ID   mm(in) 40mm(1”)
    TANK CAPACITY Coolant Tank Gallon / litre 80 gal. (300L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)    		 mm(in) 3,550 × 2,120 × 1,800 ( 139.76″ x 83.46″ x 70.86″)
    Weight kg(lb) 6,500 kg (14,330lb)
    NC Controller FANUC Oi-TD
    Read more

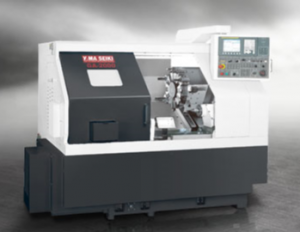

    Yama Seiki GS-2600M(L)


View All Machine Types

Lamarche Machinery

FREE Appraisal


    YesNo

    Contact Us

      Use this contact form to schedule an appointment, inquire products and services, and for all other inquiries

      Privacy Policy
