Gang Tooling

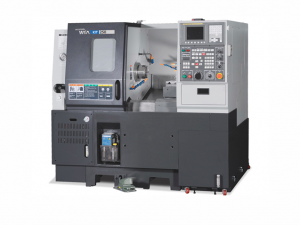

  • Description Unit KIT250
    CAPACITY Swing Over the Bed in 12.6″
    Max. Turning Dia. in 6.3″
    Max. Turning Length in 5.9″
    Bar Capacity in 1.3″
    SPINDLE Chuck Size in 5.3″
    Spindle Bore in 1.65″
    Spindle Speed (rpm) r/min 50~7,000
    Motor (Max/Cont.) kW(HP) 5.5/3.7 (7.4/5)
    Torque (Max/Cont.) ft.lb 35.4/23.9
    Spindle Type BELT
    Spindle Nose FLAT ø110
    FEED Travel (X/Z) in 9.8″/7.9″
    Rapid Travel (X/Z) in/min 945/1181
    Slide Type LM GUIDE
    BLOCK TOOL No. of Tool EA 4
    Tool Size OD in 1″
    ID   in 1″
    TANK CAPACITY Coolant Tank ℓ(gel) 95 (25.1)
    Lubricating Tank ℓ(gel) 1.8 (0.48)
    POWER SUPPLY Electric Power Supply kVA 20
    Thickness of Power Cable Sq OVER 16
    Voltage V/Hz 220/60 (200/50)
    MACHINE Floor Space (L×W) in 66″×66″
    in 66.1″×66.8″
    Height in 61.8″
    Weight kg(lb) 1,900 (4,189)
    NC Controller HYUNDAI WIA FANUC i Series
