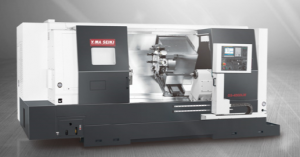

• Yama Seiki GS-4300YL

    Specifications

    DescriptionUnitGS-4300YL
    CAPACITYMax. / Swing over saddlemm(in)770 mm (30.3″)
    Max. Turning Diametermm(in) 620 mm (24.4″)
    Max. Turning Lengthmm(in)818 mm (32.2″)
    Bar Capacitymm(in)165 mm (6.5’)
    SPINDLEChuck Size(in)(20″)
    Hole through spindlemm(in)205 mm (8.07″)
    Spindle Speed (rpm)rpm1,200 rpm
    Motor output ( cont. / 30 min.)Hp / kW30 / 37 kW ( 40 / 50 HP )
    Motor (Max/Cont.)kW(HP)
    Torque (Max/Cont.)N.m
    Spindle Type2-Speed Gear Box
    Spindle NoseA2-15
    FEEDTravel (X/Z)mm(in)350mm (13.78’) / 1,600mm (62.99’)
    Rapid Travel (X/Z)m/min24 m/min
    Slide TypeHardened & Ground Box Ways
    X-axis servo motorHP (KW)9.5 HP (7 kW)
    Z-axis servo motorHP (KW)4 HP (4 HP)
    BLOCK TOOLNo. of Tool / StationsT12
    Tool SizeOD mm(in)32 mm (1”)
    ID   mm(in)60mm (2”)
    TANK CAPACITYCoolant TankGallon / litre105 gal (410L)
    Lubricating Tankℓ(gel)
    POWER SUPPLYElectric Power SupplykVA65 kVA
    Thickness of Power CableSq
    VoltageV/Hz
    MACHINEDimensions
    (L×WxH)
    mm(in)4,700 × 2,480 × 2,120 mm ( 185″ x 97″ x 84″ )
    Weightkg(lb)11,000 kg ( 24,251 lb )
    NCControllerFANUC Oi-TD
