GV-500 series

High Speed Vertical Turning Center

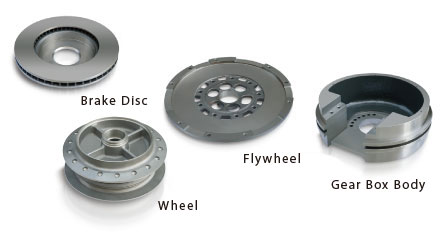

Packed with the latest machine tools technology and high precision turning capabilities, the YAMA SEIKI GV-500 series high-speed vertical CNC turning center combines a high rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle ( max. torque up to 883 Nm ). These series feature a compact machine size with heavy duty turning capabilities. In addition to the GV-500 series, the GV-500X series twin spindles & turrets equipped with loading & unloading systems can complete disk-shaped workpieces that need multi-processing in one single setup which saves a great amount of time and increases production efficiency to meet your needs of today and tomorrow.

  • Fully enclosed splash guard keeps chips and coolant contained for a safe clean working environment.
  • The low center of gravity design with 90-degree rotatable control panel provides easy access to load & unload parts and a user-friendly operating interface.
  • Super compact machine size ( 3.3 m² ) equipped with rear discharge chip conveyor increases factory space usage while providing you with a convenient conveyor system planning.

Yama Seiki

Available Option(s):

  • Yama Seiki GV-1600

    Travel (X/Z)
    ( 36.81” / 35.43” )

    Specifications

    Description Unit GV-1600
    CAPACITY Max. / Swing over saddle mm(in) 1999 mm (78.7″)
    Max. Turning Dia. mm(in)  1801 mm (70.9″)
    Max. Turning Length mm(in) 1300 mm (51.2″)
    Bar Capacity mm(in)
    SPINDLE Chuck Size (in) (63″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 250 rpm
    Motor output ( cont. / 30 min.) HP/kW 50.5 HP (37kW) / 61.4 HP (45 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type FANUC
    Spindle Nose A2-11
    FEED Travel (X/Z) mm(in) 36.81” (935 mm) / 35.43” (900mm)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type
    X-axis servo motor HP (KW)
    Z-axis servo motor HP (KW)
    BLOCK TOOL No. of Tool / Stations EA
    Tool Size OD mm(in)
    ID   mm(in)
    TANK CAPACITY Coolant Tank Gallon / litre 238 gal (900L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 100 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 152.0″ x 162.5″ x 212.4″
    ( 3,860 x 4,128 x 5,395 mm )
    Weight kg(lb) 25,500 kg ( 56,100 lb )
    NC Controller FANUC Oi-TD

    Yama Seiki GV-1600

    Travel (X/Z)
    ( 36.81” / 35.43” )

  • Specifications

    Description Unit GV-2000
    CAPACITY Max. / Swing Dia. mm(in) Ø 2,050 mm ( 80.7″ )
    Max. Turning Dia. mm(in) Ø 2,000 mm ( 78.7″ )
    Max. Turning Length mm(in) 521 mm (20.5″)
    Bar Capacity mm(in) 32 mm (1.25’)
    SPINDLE Chuck Size (in) (12″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 3,000 rpm
    Motor output ( cont. / 30 min.) HP/kW 20 HP (15kW) / 25 HP (18.5 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type Belt
    Spindle Nose A2-8
    FEED Travel (X/Z) mm(in) 13.78” (305 mm) / 21.65” (550mm)
    Rapid Travel (X/Z) m/min 20m/min
    Slide Type Linear Guide Way
    X-axis servo motor HP (KW) 2.1 HP ( 1.6 kW)
    Z-axis servo motor HP (KW) 4.0 HP ( 3.0 kW)
    BLOCK TOOL No. of Tool / Stations EA 8
    Tool Size OD mm(in) 25mm (1”)
    ID   mm(in) 50 mm (1.97”)
    TANK CAPACITY Coolant Tank Gallon / litre 66.04 gal (250L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 59.84″ x 86.61″ x 98.42″ ( 1,520 x 2,200 x 2,500 mm )
    Weight kg(lb) 5,000 kg (11,023 lbs.)
    NC Controller FANUC Oi-TD
  • Specifications

    Description Unit GV-1200
    CAPACITY Max. / Swing over saddle mm(in) 1600 mm (63″)
    Max. Turning Dia. mm(in)  1352 mm (53.2″)
    Max. Turning Length mm(in) 1300 mm (51.2″)
    Bar Capacity mm(in)
    SPINDLE Chuck Size (in) (49.2″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 350 rpm
    Motor output ( cont. / 30 min.) HP/kW 50.5 HP (37kW) / 61.4 HP (45 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type FANUC
    Spindle Nose A2-11
    FEED Travel (X/Z) mm(in) 36.81” (935 mm) / 35.43” (900mm)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type
    X-axis servo motor HP (KW)
    Z-axis servo motor HP (KW)
    BLOCK TOOL No. of Tool / Stations EA
    Tool Size OD mm(in)
    ID   mm(in)
    TANK CAPACITY Coolant Tank Gallon / litre 238 gal (900L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 100 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 144.1″ x 152.5″ x 212.4″
    ( 3,660 x 3,873 x 5,395 mm )
    Weight kg(lb) 23,500 kg ( 51,700 lb )
    NC Controller FANUC Oi-TD
  • Specifications

    Description Unit GV-1000
    CAPACITY Max. / Swing over saddle mm(in) 1021 mm (40.2″)
    Max. Turning Dia. mm(in)  1001 mm (39.4″)
    Max. Turning Length mm(in) 759 mm (29.9″)
    Bar Capacity mm(in)
    SPINDLE Chuck Size (in) (15″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 3,000 rpm
    Motor output ( cont. / 30 min.) HP/kW 30 HP (22kW) / 40 HP (30 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type Belt – Gear
    Spindle Nose A2-11
    FEED Travel (X/Z) mm(in) 20.7” (525 mm) / 30.1” (765mm)
    Rapid Travel (X/Z) m/min 24m/min
    Slide Type Linear Guide Way
    X-axis servo motor HP (KW) 5.3 HP ( 4.0 kW)
    Z-axis servo motor HP (KW) 8 HP ( 6.0 kW)
    BLOCK TOOL No. of Tool / Stations EA 12
    Tool Size OD mm(in) 32mm (1”)
    ID   mm(in) 60mm (2.36”)
    TANK CAPACITY Coolant Tank Gallon / litre 66 gal (250L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 58 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 2,595 mm x 2,975 mm x 3,050 mm ( 102.17″ x 117.13″ x 120.08″ )
    Weight kg(lb) 13,500 kg ( 29,762 lb )
    NC Controller FANUC Oi-TD
  • Specifications

    Description Unit GV-500
    CAPACITY Max. / Swing over saddle mm(in) 651 mm (25.6″)
    Max. Turning Dia. mm(in)  651 mm (25.6″)
    Max. Turning Length mm(in) 521 mm (20.5″)
    Bar Capacity mm(in) 32 mm (1.25’)
    SPINDLE Chuck Size (in) (12″)
    Hole through spindle mm(in)
    Spindle Speed (rpm) r/min 3,000 rpm
    Motor output ( cont. / 30 min.) HP/kW 20 HP (15kW) / 25 HP (18.5 kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type Belt
    Spindle Nose A2-8
    FEED Travel (X/Z) mm(in) 13.78” (305 mm) / 21.65” (550mm)
    Rapid Travel (X/Z) m/min 20m/min
    Slide Type Linear Guide Way
    X-axis servo motor HP (KW) 2.1 HP ( 1.6 kW)
    Z-axis servo motor HP (KW) 4.0 HP ( 3.0 kW)
    BLOCK TOOL No. of Tool / Stations EA 8
    Tool Size OD mm(in) 25mm (1”)
    ID   mm(in) 50 mm (1.97”)
    TANK CAPACITY Coolant Tank Gallon / litre 66.04 gal (250L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 40 kVA
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    (L×WxH)
    mm(in) 59.84″ x 86.61″ x 98.42″ ( 1,520 x 2,200 x 2,500 mm )
    Weight kg(lb) 5,000 kg (11,023 lbs.)
    NC Controller FANUC Oi-TD
