Specifications

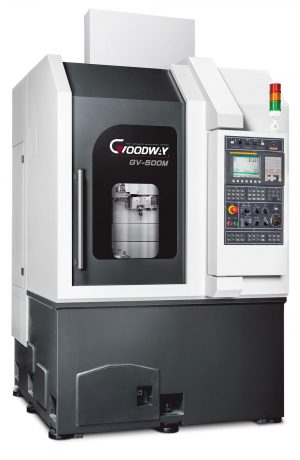

Description Unit GV-500 CAPACITY Max. / Swing over saddle mm(in) 651 mm (25.6″) Max. Turning Dia. mm(in) 651 mm (25.6″) Max. Turning Length mm(in) 521 mm (20.5″) Bar Capacity mm(in) 32 mm (1.25’) SPINDLE Chuck Size (in) (12″) Hole through spindle mm(in) Spindle Speed (rpm) r/min 3,000 rpm Motor output ( cont. / 30 min.) HP/kW 20 HP (15kW) / 25 HP (18.5 kW) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – Belt Spindle Nose – A2-8 FEED Travel (X/Z) mm(in) 13.78” (305 mm) / 21.65” (550mm) Rapid Travel (X/Z) m/min 20m/min Slide Type – Linear Guide Way X-axis servo motor HP (KW) 2.1 HP ( 1.6 kW) Z-axis servo motor HP (KW) 4.0 HP ( 3.0 kW) BLOCK TOOL No. of Tool / Stations EA 8 Tool Size OD mm(in) 25mm (1”) ID mm(in) 50 mm (1.97”) TANK CAPACITY Coolant Tank Gallon / litre 66.04 gal (250L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 40 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 59.84″ x 86.61″ x 98.42″ ( 1,520 x 2,200 x 2,500 mm ) Weight kg(lb) 5,000 kg (11,023 lbs.) NC Controller FANUC Oi-TD
