Standard Turret

  • Description Unit SE2200LA
    Max Turning Dia inch 13.75″
    Max Turning Length inch 12.16″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 20
    Spindle Torque lbf.ft 93
    Travel(X/Z) inch 8.3″/22″
    Rapid Travel(X/Z) m/min 1181 / 1417
    Slide Type Roller LM Guide
    No. of Tools EA 12
    Tool Size inch 1″/1.5″
    Milling Tool Speed r/min

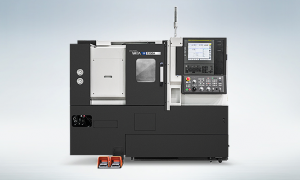

  • Description Unit SE2200A
    Max Turning Dia inch 13.75″
    Max Turning Length inch 12.16″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 20
    Spindle Torque lbf.ft 93
    Travel(X/Z) inch 8.3″/13.4″
    Rapid Travel(X/Z) m/min 1181 / 1417
    Slide Type Roller LM Guide
    No. of Tools EA 12
    Tool Size inch 1″/1.5″
    Milling Tool Speed r/min
  • Specifications

    Description Unit L160LA L160LMA L160LMSA
    Max Turning Dia inch 14″ 12.2″ 12.2″
    Max Turning Length inch 22″ 21.7″ 21.7″
    Chuck Size inch 6″ 6″ Main 6″
    Sub 6″
    Driving Method Belt Belt Belt
    Spindle RPM r/min 6,000 6,000 6,000
    Spindle Output HP 15/10 15/10 15/10
    Spindle Torque lbf.ft 51.6/35.2 51.6/35.2 51.6/35.2
    Travel(X/Z) inch 8.7″/22″ 8.7″/22″ 8.7″/22″/23.2″
    Rapid Travel(X/Z) m/min 36/36 36/36 36/36/30
    Slide Type LM LM LM
    No. of Tools EA 12 12 12
    Tool Size inch 1″/1.6″ 1″/1.6″ 1″/1.6″
    Milling Tool Speed r/min 5,000 5,000
    CNC H/W FANUC i H/W FANUC i H/W FANUC i

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalogue.

  • Specifications

    Description Unit L160LA L160LMA L160LMSA
    Max Turning Dia inch 14″ 12.2″ 12.2″
    Max Turning Length inch 22″ 21.7″ 21.7″
    Chuck Size inch 6″ 6″ Main 6″
    Sub 6″
    Driving Method Belt Belt Belt
    Spindle RPM r/min 6,000 6,000 6,000
    Spindle Output HP 15/10 15/10 15/10
    Spindle Torque lbf.ft 51.6/35.2 51.6/35.2 51.6/35.2
    Travel(X/Z) inch 8.7″/22″ 8.7″/22″ 8.7″/22″/23.2″
    Rapid Travel(X/Z) m/min 36/36 36/36 36/36/30
    Slide Type LM LM LM
    No. of Tools EA 12 12 12
    Tool Size inch 1″/1.6″ 1″/1.6″ 1″/1.6″
    Milling Tool Speed r/min 5,000 5,000
    CNC H/W FANUC i H/W FANUC i H/W FANUC i

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalogue.

  • DESCRIPTION UNIT VALUE
    Max Turning Dia inch 11″
    Max Turning Length inch 20.1″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 10/15
    Spindle Torque lbf.ft 26.4/51.6
    Travel(X/Z) inch 6.5″/20.9″
    Rapid Travel(X/Z) in/min 1181 / 1181
    Slide Type LM
    No. of Tools EA 12
    Tool Size inch 0.75″/1.25
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Description Unit E160A
    Max Turning Dia inch 11″
    Max Turning Length inch 11.8″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 10/15
    Spindle Torque lbf.ft 26.4/51.6
    Travel(X/Z) inch 6.5″/13″
    Rapid Travel(X/Z) m/min 1181 / 1181
    Slide Type LM
    No. of Tools EA 12
    Tool Size inch 0.75″/1.25
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  •

    Specifications

    Description Unit LF1600/2SP LF1600M/2SP
    Max Turning Dia inch 10.2″ 10.2″
    Max Turning Length inch 6.5″ 6.5″
    Chuck Size inch 6″ 6″
    Driving Method Belt Belt
    Spindle RPM r/min 4,500 4,500
    Spindle Output HP 7.4/10 7.4/10
    Spindle Torque lbf.ft 34.6/47.2 34.6/47.2
    Travel(X/Z) inch 5.5″/6.5″ 5.5″/6.5″
    Rapid Travel(X/Z) m/min 24/24 24/24
    Slide Type BOX BOX
    No. of Tools EA 2 x 10 2 x 10
    Tool Size inch 0.8″/1.3″ 0.8″/1.3″
    Milling Tool Speed r/min 4000
    CNC F31i F31i

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalogue.

  • HYUNDAI-WIA-E200A
    DESCRIPTION UNIT E200PA
    Max Turning Dia inch 13.8″
    Max Turning Length inch 11″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output hp 14.75/20
    Spindle Torque ft.lb 38.7/68.2
    Travel(X/Z) inch 8.3″ / 12.2″
    Rapid Travel(X/Z) in/min 945/945
    Slide Type BOX
    No. of Tools EA 12
    Tool Size (OD/ID) inch 1″ / 1.25″
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • HYUNDAI-WIA-E200A
    DESCRIPTION UNIT E200A
    Max Turning Dia inch 13.8″
    Max Turning Length inch 11.8″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output hp 14.75/20
    Spindle Torque ft.lb 38.7/68.2
    Travel(X/Z) inch 8.3″ / 13″
    Rapid Travel(X/Z) in/min 1,417/1,417
    Slide Type LM
    No. of Tools EA 12
    Tool Size (OD/ID) inch 1″ / 1.25″
    Milling Tool Speed r/min

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.

  • Specifications

    Description Unit L160LA L160LMA L160LMSA
    Max Turning Dia inch 14″ 12.2″ 12.2″
    Max Turning Length inch 22″ 21.7″ 21.7″
    Chuck Size inch 6″ 6″ Main 6″
    Sub 6″
    Driving Method Belt Belt Belt
    Spindle RPM r/min 6,000 6,000 6,000
    Spindle Output HP 15/10 15/10 15/10
    Spindle Torque lbf.ft 51.6/35.2 51.6/35.2 51.6/35.2
    Travel(X/Z) inch 8.7″/22″ 8.7″/22″ 8.7″/22″/23.2″
    Rapid Travel(X/Z) m/min 36/36 36/36 36/36/30
    Slide Type LM LM LM
    No. of Tools EA 12 12 12
    Tool Size inch 1″/1.6″ 1″/1.6″ 1″/1.6″
    Milling Tool Speed r/min 5,000 5,000
    CNC H/W FANUC i H/W FANUC i H/W FANUC i

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalogue.

  • Hyundai Wai L160A - L160MA

    Specifications

    Description Unit L160A
    CAPACITY Swing Over the Bed in 23.6″
    Max. Turning Dia. in 14″
    Max. Turning Length in 18.1″
    Bar Capacity in 1.8″
    SPINDLE Chuck Size in 6″
    Spindle Bore in 2.1″
    Spindle Speed (rpm) r/min 6,000 [6,000]
    Motor (Max/Cont.) kW(HP) 11/7.5(14.7/10) [10.8/9(14.5/12)]
    Torque (Max/Cont.) N.m 70/47.7(51.6/35.2) [69/57.3(50.8/42.2)]
    Spindle Type BELT
    Spindle Nose A2-5
    FEED Travel (X/Z) in 8.7″/18.1″
    Rapid Travel (X/Z) in/min 1,417/1,417
    Slide Type X-Axis : Ball Type LM GUIDE, Z-Axis : ROLLER Type LM GUIDE
    BLOCK TOOL No. of Tool EA 12
    Tool Size OD in 1″
    ID   in 1.6″
    TANK CAPACITY Coolant Tank ℓ(gel) 150 (39.6)
    Lubricating Tank ℓ(gel) 1.8 (0.5)
    POWER SUPPLY Electric Power Supply kVA 19
    Thickness of Power Cable Sq OVER 16
    Voltage V/Hz 220/60 (200/50)
    MACHINE Floor Space (L×W) mm 2,720×1,685
    in 107.1″×66.3″
    Height in 73.2″
    Weight kg(lb) 4,300 (9,480)
    NC Controller HYUNDAI WIA FANUC i Series [SIEMENS 828D]
  • DESCRIPTION UNIT E160LMA
    Max Turning Dia inch 7.5″
    Max Turning Length inch 17.7″
    Chuck Size inch 6″
    Driving Method Belt
    Spindle RPM r/min 6,000
    Spindle Output HP 15/20
    Spindle Torque lbf.ft 38.7/70.4
    Travel(X/Z) inch 6.5″/18.1″
    Rapid Travel(X/Z) in/min 1181 / 1181
    Slide Type LM
    No. of Tools EA 12
    Tool Size (ID/OD) inch 0.75″/1.25
    Milling Tool Speed r/min 4,500

    Specifications are subject to change without notice for quality improvement.
    In case of any further information, please refer to the machine catalog.
