Spinner Eurotech Horizontal Turning Centers

Eurotech TC 300

Model	TC300
Max swing diameter	15.7″
Max turning diameter	7.9″
Max turning length	15.7″
Stroke X	7″
Stroke Y*	+/- 1.6″
Stroke Z	17.7″
Rapid traverse X-axis / Y-axis / Z-axis	( 0.6 / 0.6 / 0.9 ) inches / min
Feed screw diameter x pitch X-axis	1″ x 0.2″
Feed screw diameter x pitch Y-axis	1″ x 0.2″
Feed screw diamter x pitch Z1-axis	1.6″ x 0.4″
Feed screw diamter x pitch Z2-axis*	1.6″ x 0.2″

*Option

	T600-65	T600-85
Swing Diameter	23.6″	23.6″
Max. Turning Diameter	15.75″	15.75″
Max. Turning Length	25.59″	25.59″
X1 / Z-axis	+ 10.83″ / – 1.57″	+ 10.83″ / – 1.57″
Axes
Rapid Traverse X / Y / Z	590.5 / 590.5 / 944.9 inch/min	590.5 / 590.5 / 944.9 inch/min
Spindle 1
Max. Spindle Speed	4000 rpm (option 5000 rpm)	3200 rpm (option 4000rpm)
Spindle Nose	A8/DIN	A8/DIN
Chuck Diameter	9.84″	9.84″
Spindle Bore	2.56″	3.35″
Performance Pmax	34 kW	34 kW
Max Torque	240 ft-lb	240 ft-lb
Spindle 2
Max. Spindle Speed	6000 rpm	6000 rpm
Spindle Nose	4.33″	4.33″
Chuck Diameter	6.5″	6.5″
Spindle Bore	1.65″	1.65″
Performance Pmax	15 kW	15 kW
Max Torque	70 ft-lb	70 ft-lb
Turret
Number of tools stations	16 (BMT45)	16 (BMT45)
Number of driven tools (options)	all	all
Toolholder	BMT45	BMT45
Max. Speed of Driven Tools	6000 rpm	6000 rpm
Performance Pmax	16.5 kW	16.5 kW
Max Torque	25.8 ft-lb	25.8 ft-lb
General
Dimensions L x W x H	110″ x 68.9″ x 82.3″	110″ x 68.9″ x 82.3″
Weight	12,800 lbs	13,900 lbs

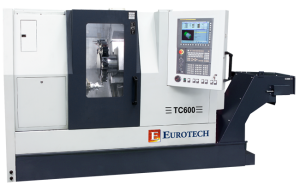

	T600-65	T600-85
Swing Diameter	23.6″	23.6″
Max. Turning Diameter	15.75″	15.75″
Max. Turning Length	25.59″	25.59″
X1 / Z-axis	+ 10.83″ / – 1.57″	+ 10.83″ / – 1.57″
Axes
Rapid Traverse X / Y / Z	590.5 / 590.5 / 944.9 inch/min	590.5 / 590.5 / 944.9 inch/min
Spindle 1
Max. Spindle Speed	4000 rpm (option 5000 rpm)	3200 rpm (option 4000rpm)
Spindle Nose	A8/DIN	A8/DIN
Chuck Diameter	9.84″	9.84″
Spindle Bore	2.56″	3.35″
Performance Pmax	34 kW	34 kW
Max Torque	240 ft-lb	240 ft-lb
Spindle 2
Max. Spindle Speed	6000 rpm	6000 rpm
Spindle Nose	4.33″	4.33″
Chuck Diameter	6.5″	6.5″
Spindle Bore	1.65″	1.65″
Performance Pmax	15 kW	15 kW
Max Torque	70 ft-lb	70 ft-lb
Turret
Number of tools stations	16 (BMT45)	16 (BMT45)
Number of driven tools (options)	all	all
Toolholder	BMT45	BMT45
Max. Speed of Driven Tools	6000 rpm	6000 rpm
Performance Pmax	16.5 kW	16.5 kW
Max Torque	25.8 ft-lb	25.8 ft-lb
General
Dimensions L x W x H	110″ x 68.9″ x 82.3″	110″ x 68.9″ x 82.3″
Weight	12,800 lbs	13,900 lbs

	TTC300-52	TTC300-65
Swing Diameter	15.75″	15.75″
Max. Turning Diameter	7.87″	7.87″
Max. Turning Length	15.75″	15.75″
X1 / X2/ Z-axis	7.1 / 4.33 / 17.72 in	7.1 / 4.33 / 17.72 in
Y-axis (option)	+1.57 / -1.57 in	+1.57 / -1.57 in
Axes
Rapid Traverse X / Y / Z	590.5 / 590.5 / 944.9 inch/min	590.5 / 590.5 / 944.9 inch/min
Spindle 1
Max. Spindle Speed	5000 rpm	4000 rpm (option 5000rpm)
Spindle Nose	A6/DIN	A8/DIN
Chuck Diameter	8.27″	9.84″
Bar Capacity	2.05″	2.56″
Performance Pmax	31.5 HP	45.6 HP
Max Torque	111 ft-lb	240 ft-lb
Spindle 2
Max. Spindle Speed	7000 rpm	7000 rpm
Spindle Nose	3.94″	3.94″
Chuck Diameter	6.50″	26.50″
Spindle Bore	1.65″	1.65″
Performance Pmax	18.5 HP	18.5 HP
Max Torque	139.4 lb/ft	139.4 lb/ft
Turret
Number of tools stations	12 + 12 (BMT45)	12 + 12 (BMT45)
Number of driven tools (options)	all	all
Toolholder	BMT45	BMT45
Max. Speed of Driven Tools	6000 rpm	6000 rpm
Performance Pmax	22.1 HP	22.1 HP
Max Torque	25.8 ft-lb	25.8 ft-lb
General
Dimensions L x W x H	98.4 x 74.8 x 85.24 in	106.3 x 74.8 x 85.24 in
Weight	10,150 lbs	11,255 lbs
