Standard Turret

  • Specifications

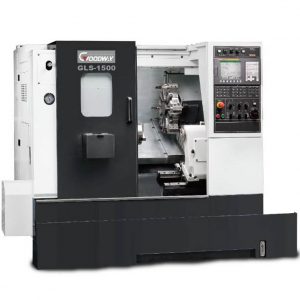

    Description Unit GLS-1500 L
    CAPACITY Max. / Swing over saddle mm(in) 230 mm (9″)
    Max. Turning Diameter mm(in)  390 mm (15.35″)
    Max. Turning Length mm(in) 330 mm (13″)
    Bar Capacity mm(in) 51 mm (2″)
    SPINDLE Chuck Size (in) (6″)
    Hole through spindle mm(in) 61mm (2.4″)
    Spindle Speed (rpm) rpm 6,000
    Motor output ( cont. / 30 min.) Hp / kW 15 (11kW)
    Motor (Max/Cont.) kW(HP)
    Torque (Max/Cont.) N.m
    Spindle Type Direct Belt Drive
    Spindle Nose A2-5
    FEED Travel (X/Z) mm(in) (230mm (90″) (330mm (13″)
    Rapid Travel (X/Z) m/min 30 m/min
    Slide Type Linear Guide Way
    X-axis servo motor HP (KW) 3.6 HP ( 2.7 kW)
    Z-axis servo motor HP (KW) 3.6 HP ( 2.7 kW)
    BLOCK TOOL No. of Tool / Stations T 12
    Tool Size OD mm(in) 25mm (1″)
    ID   mm(in) 40mm (1″)
    TANK CAPACITY Coolant Tank Gallon / litre 26 gal (100L)
    Lubricating Tank ℓ(gel)
    POWER SUPPLY Electric Power Supply kVA 200
    Thickness of Power Cable Sq
    Voltage V/Hz
    MACHINE Dimensions
    mm(in) 86″ x 62″ x 67″ ( 2,174 x 1,550 x 1,680 mm )
    Weight kg(lb) 3,000 kg (6,600lb)
    NC Controller FANUC Oi-TF
