• Specifications

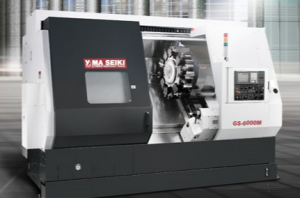

    DescriptionUnitGS-6600ML
    CAPACITYMax. / Swing over saddlemm(in)980 mm (38.6″)
    Max. Turning Diametermm(in) 879 mm (34.6″)
    Max. Turning Lengthmm(in)950 mm (37.4″)
    Bar Capacitymm(in)178 mm (8.07’)
    SPINDLEChuck Size(in)(22″)
    Hole through spindlemm(in)205 mm (8.07″)
    Spindle Speed (rpm)rpm1,100 rpm
    Motor output ( cont. / 30 min.)Hp / kW40 / 50 HP ( 30 / 37 kW )
    Motor (Max/Cont.)kW(HP)
    Torque (Max/Cont.)N.m
    Spindle TypeV-Belt + Gear Box
    Spindle NoseA2-15
    FEEDTravel (X/Z)mm(in)500mm (19.68’) / 1,965mm (77.36’)
    Rapid Travel (X/Z)m/min24 m/min
    Slide TypeBox Way
    X-axis servo motorHP (KW)
    Z-axis servo motorHP (KW)
    BLOCK TOOLNo. of Tool / StationsT12
    Tool SizeOD mm(in)32 mm (1”)
    ID   mm(in)60mm (2”)
    TANK CAPACITYCoolant TankGallon / litre84 gal (320L)
    Lubricating Tankℓ(gel)
    POWER SUPPLYElectric Power SupplykVA64 kVA
    Thickness of Power CableSq
    VoltageV/Hz
    MACHINEDimensions
    (L×WxH)
    mm(in)199.21″ x 95.27″ x 101.10″ ( 5,060 x 2,420 x 2,568 mm )
    Weightkg(lb)14,000 kg ( 30,865 lb )
    NCControllerOi-TD
