Specifications
Description Unit GS-4300ML CAPACITY Max. / Swing over saddle mm(in) 770 mm (30.3″) Max. Turning Diameter mm(in) 620 mm (24.4″) Max. Turning Length mm(in) 749 mm (29.5″) Bar Capacity mm(in) 165 mm (6.5’) SPINDLE Chuck Size (in) (20″) Hole through spindle mm(in) 205 mm (8.07″) Spindle Speed (rpm) rpm 1,200 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 37 kW ( 40 / 50 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 2-Speed Gear Box Spindle Nose – A2-15 FEED Travel (X/Z) mm(in) 350mm (13.78’) / 1,600mm (62.99’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Hardened & Ground Box Ways X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 105 gal (410L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 65 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 4,700 × 2,480 × 2,120 mm ( 185″ x 97″ x 84″ ) Weight kg(lb) 11,000 kg ( 24,251 lb ) NC Controller FANUC Oi-TD -

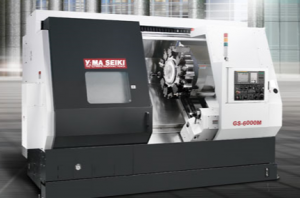

Specifications
Description Unit GS-6600ML CAPACITY Max. / Swing over saddle mm(in) 980 mm (38.6″) Max. Turning Diameter mm(in) 879 mm (34.6″) Max. Turning Length mm(in) 950 mm (37.4″) Bar Capacity mm(in) 178 mm (7’) SPINDLE Chuck Size (in) (20″) Hole through spindle mm(in) 205 mm (8.07″) Spindle Speed (rpm) rpm 1,100 rpm Motor output ( cont. / 30 min.) Hp / kW 40 / 50 HP ( 30 / 37 kW ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – V-Belt + Gear Box Spindle Nose – A2-15 FEED Travel (X/Z) mm(in) 500mm (19.68’) / 1,965mm (77.36’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Box Way X-axis servo motor HP (KW) Z-axis servo motor HP (KW) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 84 gal (320L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 64 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 199.21″ x 95.27″ x 101.10″ ( 5,060 x 2,420 x 2,568 mm ) Weight kg(lb) 14,000 kg ( 30,865 lb ) NC Controller Oi-TD -
Specifications
Description Unit GS-4300YL CAPACITY Max. / Swing over saddle mm(in) 770 mm (30.3″) Max. Turning Diameter mm(in) 620 mm (24.4″) Max. Turning Length mm(in) 818 mm (32.2″) Bar Capacity mm(in) 165 mm (6.5’) SPINDLE Chuck Size (in) (20″) Hole through spindle mm(in) 205 mm (8.07″) Spindle Speed (rpm) rpm 1,200 rpm Motor output ( cont. / 30 min.) Hp / kW 30 / 37 kW ( 40 / 50 HP ) Motor (Max/Cont.) kW(HP) Torque (Max/Cont.) N.m Spindle Type – 2-Speed Gear Box Spindle Nose – A2-15 FEED Travel (X/Z) mm(in) 350mm (13.78’) / 1,600mm (62.99’) Rapid Travel (X/Z) m/min 24 m/min Slide Type – Hardened & Ground Box Ways X-axis servo motor HP (KW) 9.5 HP (7 kW) Z-axis servo motor HP (KW) 4 HP (4 HP) BLOCK TOOL No. of Tool / Stations T 12 Tool Size OD mm(in) 32 mm (1”) ID mm(in) 60mm (2”) TANK CAPACITY Coolant Tank Gallon / litre 105 gal (410L) Lubricating Tank ℓ(gel) POWER SUPPLY Electric Power Supply kVA 65 kVA Thickness of Power Cable Sq Voltage V/Hz MACHINE Dimensions
(L×WxH)mm(in) 4,700 × 2,480 × 2,120 mm ( 185″ x 97″ x 84″ ) Weight kg(lb) 11,000 kg ( 24,251 lb ) NC Controller FANUC Oi-TD
